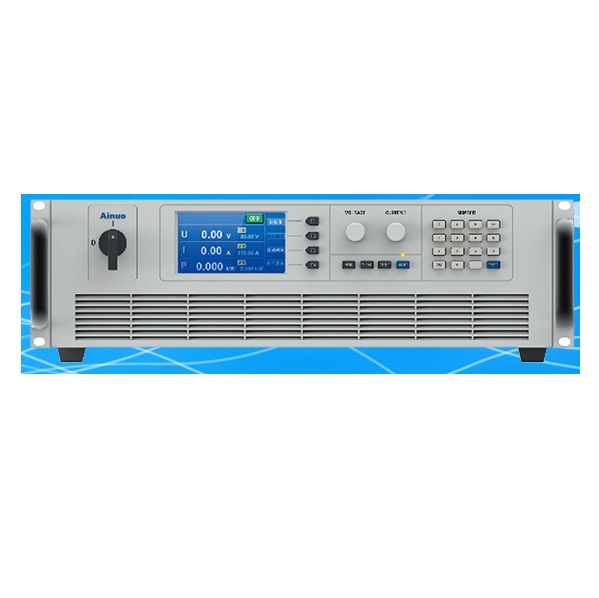

Ainuo AN531500-30(F) ພະລັງງານການທົດສອບ DC ລະດັບຄວາມກ້ວາງຂອງໂປຣແກຣມ (1500V/30A/15kW)
Input: 3-phase 3-wire +PE, 340V~420VAC, 47-63Hz
Output:
- Voltage: 0~1500V
- Current: 0~30A
- Power: 0~15kW
Testing accuracy:
- Voltage: ≤0.15%Umax, Resolution: 0.01V (>1000V, 0.1V)
- Current: ≤0.3%Imax, Resolution: 0.01A
- Power: ≤1%Pmax, Resolution: 0.001kW (>100kW, 0.01kW)
Ripple and Noise (20Hz~20MHz):
- Vrms: 400mV
- Vpp: 2400mV
Load effect: Voltage: ≤0.05%Umax, Current≤0.15%Imax
Source effect: Voltage≤0.02%Umax, Current≤0.05%Imax
Transient response time: ≤2ms
Rise time 100%: 50ms (10%-90%)
Max output voltage drop compensation: 25V
Communication interface: Standard RS232, Optional RS485, CAN, LAN, GPIB, Analog interface
Protection: reverse, current limiting, S terminal compensation, Input phase loss protection, output overvoltage, overheat, short circuit protection
Parallel: Support multiple parallel outputs to expand the power/current range
Environment: Temperature: 0~40℃; Humidity: 20~90%RH
Dimension W×H×D (mm): 440×133×600
Weight: 37kg
