Input: Single phase, 220V ± 22V, 47–63Hz
Output:
Voltage: 0 ~ 35V
Current: 0 ~ 100A
Power: 0 ~ 3000W
Resolution / Accuracy
Voltage: Resolution 0.01V, Accuracy ≤ 0.2% Umax
Current: Resolution 0.01A, Accuracy ≤ 0.35% Imax
Ripple and Noise (20Hz–20MHz)
Vrms: 30mV
Vpp: 200mV
Effect
Voltage: Load effect ≤ 0.1% Umax, Source effect ≤ 0.05% Umax
Current: Load effect ≤ 0.2% Imax, Source effect ≤ 0.1% Imax
Transient response time: ≤5ms
Rise time 100%: On line voltage adjustment: 50ms (10%–90%), Start slow-rise time: 1s
Communication: RS-232 (Standard) / RS-485 (Optional) / Analog interface (Optional)
Protection: Output short-circuit protection, output overvoltage, overheat, S-terminal over-compensation protection, S-terminal reversal protection
List test function (Optional):
Capable of storing 50 sequences, each sequence contains 20 steps; Each step can be set independently, total 13 independent functions
Environment: 0~40℃; Humidity 20~90%RH
Dimension: 440×133×350 mm
Weight: 13.5 kg

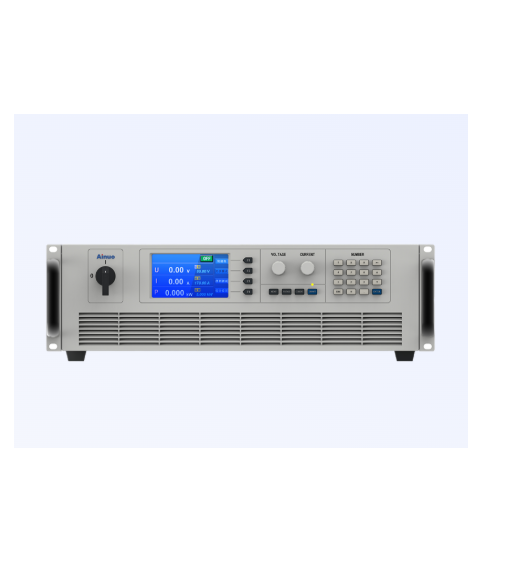

*Images for illustration purposes only
