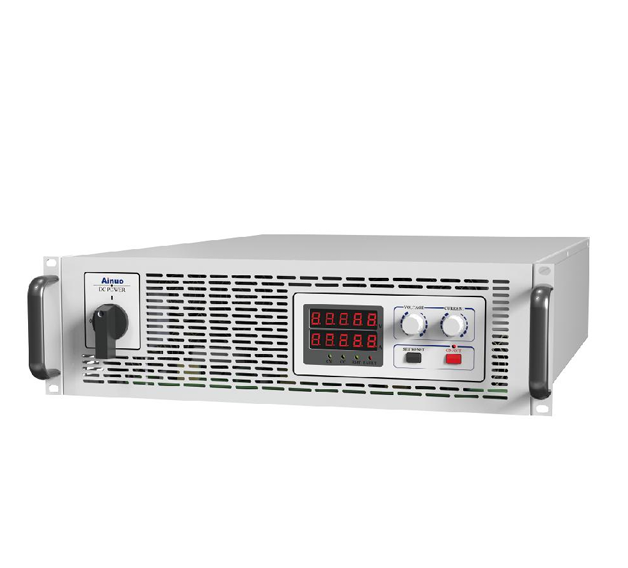

Ainuo AN5010-100(F) ອຸປະກອນຈົດກຳລັງໄຟຟ້າ DC ທີ່ມີການຄວບຄຸມ (0~10V, 0~100A, 0~1000W)
Input Power Supply: Single phase, 220V±22V, 47-63Hz
Output Voltage: 0~10V
Output Current: 0~100A
Output Power: 0~1000W
Resolution and accuracy (Voltage): Resolution 0.001V (0.01V when ≥10V), accuracy ≤0.4%Umax
Resolution and accuracy (Current): Resolution 0.001A (0.01A when ≥10A), accuracy ≤0.5%Imax
Ripple and Noise (Vrms): 30mV
Ripple and Noise (Vpp, 20Hz20MHz): 200mV
Effect (Voltage): Load effect ≤0.1%Umax, source effect ≤0.05%Umax
Effect (Current): Load effect ≤0.2%Imax, source effect ≤0.1%Imax
Transient response time: ≤5ms
Maximum lead voltage drop compensation: 2V
Communication function: RS-232 (standard)/RS485 (optional)
Protection function: Output short-circuit protection, output overvoltage, internal overheating protection, S-terminal over-compensation protection, S-terminal reversal protection
Analog interface (optional): Start, stop, alarm, 0-5V/0-10V or 4-20mA analog control output
Working Environment: Temperature: 0~40°C; Humidity: 20~90%RH
Volume (W×H×D): 210×133×325mm
Weight: 6kg
