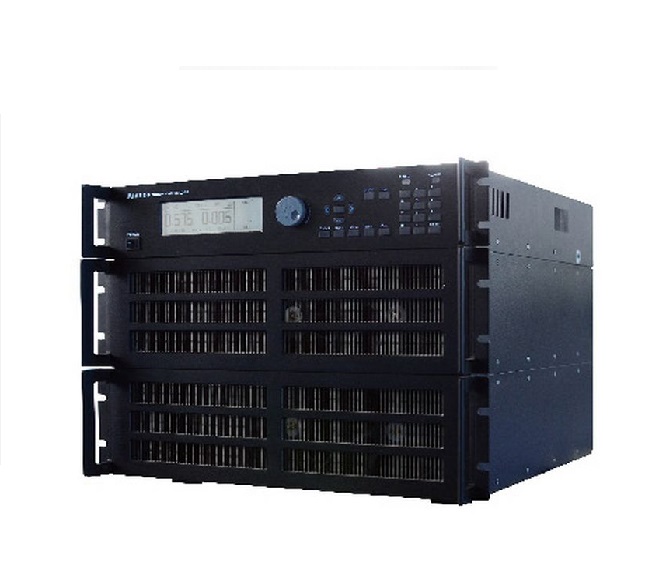

Ainuo AN29202(F) AC/DC Electronic Load (2800W, 260V, 20A)

Name: Ainuo AN29202(F) AC/DC Electronic Load (2800W, 260V, 20A)
Brand: Ainuo

ຜູ້ຜະລິດAinuo(ເບິ່ງສິນຄ້າອື່ນໆຂອງຍີ່ຫໍ້ນີ້)

ModelAN29202（F）

ຕິດຕໍ່

ຈຳນວນ

ການຊຳລະເງິນທີ່ປອດໄພ

ການຮັບປະກັນຄຸນນະພາບ

ປ່ຽນ ແລະ ສົ່ງຄືນງ່າຍ

ມີບໍລິການຈັດສົ່ງ

Max. Power: 2800W
Max. Voltage: 260V
Max. Current: 20A
Working Frequency: DC,40～440Hz
1) Working Mode
+ Constant Current: 0.10～20A ; DC/50/60Hz:±(0.5% of setting + 0.3 % of measurement); 400Hz: ±(1.0 % of setting + 0.5% of measurement)
+ Constant Resistance: 1～200Ω ; DC/50/60Hz:±(1.5% of setting + 0.5 % of measurement); 400Hz: ±(1.5 % of setting + 1.0% of measurement)
+ Constant Power: 10W~2800W; DC/50/60Hz:±(1.5% of setting + 0.5 % of measurement); 400Hz: ±(2 % of setting + 1.0% of measurement)
2) Test
+ Voltage: 0~260V; DC/50/60Hz:±(0.5% of setting + 0.1 % of measurement); 400Hz: ±(0.5 % of setting + 0.1% of measurement)
+ Current: 0~20.00A; DC/50/60Hz:±(0.5% of setting + 0.2 % of measurement): 400Hz: ±(1.0 % of setting + 0.5% of measurement)
+ Power: 10W~2800W; DC/50/60Hz:±(1.5% of setting + 0.5 % of measurement); 400Hz: ±(2% of setting + 1.0% of measurement)
3) Protection
+ Input Over Voltage: Max. 105％
+ Input Over Current: Max. 105％
+ Input Over Power: Max. 105％
+ Over Temperature: 85℃
4) Dimension: 482*356*460
5) Trọng lượng: 43 kg

Product Detail

With Basic working mode of constant current, constant resistance and constant power

Widely used in simulation tests for inverters such as transformer, UPS, AC inductive and capacity and rectification capacitive load

Model No.				AN29201（F）		AN29202（F）		AN29203（F）	AN29204（F）
Working Conditions	Working Power Supply			AC 220V±10%，50/60Hz±5%
	Environment Temperature			0～40℃
	Relative Humidity			20～90％RH40℃
Measurement	Max. Power			1400W		2800W		4200W	5600W
	Max. Voltage			260V
	Max. Current			10A		20A		30A	40A
	Working Frequency			DC,40～440Hz
Working Mode	Constant Current	Measurement		0.10～10A		0.10～20A		0.10～30A	0.10～40A
		Resolution		10mA
		Allowed Maximum Error		DC/50/60Hz:±(0.5% of setting + 0.3 % of measurement) 400Hz: ±(1.0 % of setting + 0.5% of measurement)
	Constant Resistance	Measurement		1～400Ω		1～200Ω		1～130Ω	1～100Ω
		Resolution		0.1 /1Ω
		Allowed Maximum Error		DC/50/60Hz:±(1.5% of setting + 0.5 % of measurement) 400Hz: ±(1.5 % of setting + 1.0% of measurement)
	Constant Power	Measurement		10W~1400W		10W~2800W		10W~4200W	10W~5600W
		Resolution		1W
		Allowed Maximum Error		DC/50/60Hz:±(1.5% of setting + 0.5 % of measurement) 400Hz: ±(2 % of setting + 1.0% of measurement)
Test	Voltage	Measurement		0~260V
		Resolution		100mV
		Allowed Maximum Error		DC/50/60Hz:±(0.5% of setting + 0.1 % of measurement) 400Hz: ±(0.5 % of setting + 0.1% of measurement)
	Current	Measurement		0~10.00A		0~20.00A		0~30.00A	0~40.00A
		Resolution		10mA
		Allowed Maximum Error		DC/50/60Hz:±(0.5% of setting + 0.2 % of measurement) 400Hz: ±(1.0 % of setting + 0.5% of measurement)
	Power	Measurement		10W~1400W		10W~2800W		10W~4200W	10W~5600W
		Resolution		1W
		Allowed Maximum Error		DC/50/60Hz:±(1.5% of setting + 0.5 % of measurement) 400Hz: ±(2% of setting + 1.0% of measurement)
CurrentPhaseshift Angle	Setting Range			0°～±90°
Current Waveform Simulation	Peak Factor Setting Range			1.4～5
	Trigger Phaseshift Range			(0°) ～(360°)
Dynamic Characteristics	Load On Time Setting Range			5ms～10s
	Load On Time Setting Error			Max. 10us
Protection	Input Over Voltage			Max. 105％
	Input Over Current			Max. 105％
	Input Over Power			Max. 105％
	Over Temperature			85℃
Dimension	482223460 (W×H×D)				482356460
Weight（Kg）	33		43		58		68
Optional Accessories	RS232, RS485, GPIB, USB, Net gape, Single/ 3-phase Online and I-Monitor Interface
