Ainuo AN23103H(F) Module DC Electronic Load (1～60V; 0～60A; 0～300W ) | EMIN.COM.LA

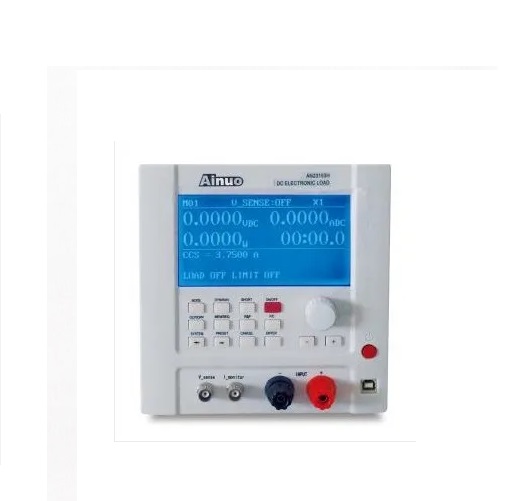

Ainuo AN23103H(F) Module DC Electronic Load (1～60V; 0～60A; 0～300W )

Name: Ainuo AN23103H(F) Module DC Electronic Load (1～60V; 0～60A; 0～300W )
Brand: Ainuo

ຜູ້ຜະລິດAinuo(ເບິ່ງສິນຄ້າອື່ນໆຂອງຍີ່ຫໍ້ນີ້)

ModelAN23103H(F)

ຕິດຕໍ່

ຈຳນວນ

ການຊຳລະເງິນທີ່ປອດໄພ

ການຮັບປະກັນຄຸນນະພາບ

ປ່ຽນ ແລະ ສົ່ງຄືນງ່າຍ

ມີບໍລິການຈັດສົ່ງ

Input range: 1～60V; 0～60A; 0～300W
CC Static: 0～6A/ ±（0.1% ×reading +0.1% ×range; 0～2A/ ±（0.1% ×reading+0.1%× range); 0～20A/±（0.1%× reading+0.2% × range）
CR: (0.025Ω~100Ω; 1.25Ω~5KΩ; 50Ω~200KΩ)/ 12bits
CV: 1 ～ 60V/ ±（0.05%× setting +0.1%×range; 2.5 ～ 500V/ ±（0.05%× setting +0.2%× range）
CP: 1 ～ 300W/ ±（0.5%× setting + 0.2%× range; 1 ～ 300W/ ±（0.5%× setting + 0.2%× range)
CC Dynamic:
+ T1&T2: 0.025mS~10mS/ 1uS+100ppm; 1mS~30S/ 1mS+100ppm; 0.025mS~10mS; 1uS+100ppm
+ Slope: 0.16~40mA/uS
Short Circuit:
+ Short Style: FET Switch
+ Min. Short-circuit Resistance: 0.025Ω
+ Max. Short-circuit Current: 60A
Display: LCD, 5 digit
Protection: Input Over Voltage, Input Over Current, Input Over Power
Standard Interface: RS232 COM
Dimension W×H×D: 168×188×500

Product Detail

Applicable for fast test for power panel production line of LCD Inverter, LIPS, PDP and so on. Applicable for fast tests of switching power supply, adaptor, charger, power supply module and PC power supply, etc.

★Adopt high frequency DDS (Direct Digital Synthesizer) technique to control rise/fall of load current slope independently; can realize arbitrary dynamic load of any waveform by programming without analog signal of waveform generator input
★Adopt DSP (Digital Signal Processor) and high accuracy 16 bits ADC, making test accurate and fast
★Large LCD screen display, able to display multi test parameters (voltage, current, power) simultaneously in 5 digits
★Able to reach maximum load current with 0.5V input, particularly suitable for power supply test with low voltage and large current
★Able to test fast and convenient, with 10 test sequences, 8 steps/sequence; all tests including empty load, CC, CV, SHORT, OCP and OPP able to be completed by one single button
★With working modes of CV, CC, CR, CP, dynamic load and SHORT; The maximum rise/fall ratio of dynamic load current is 2.5A/µs

Model No.			AN23103H(F)				AN23163H(F)
Input Range	Input Voltage		1～60V		2.5～500V
	Input Current		0～60A		0～10A
	Input Power		0～300W		0～300W
CC Static	Range		0～6A	0～2A	0～20A	0～20A
	Resolution		1.5mA	0.25mA	2.5mA	2.5mA
	Accuracy		±（0.1% ×reading +0.1% ×range）	±（0.1% ×reading+0.1%× range ）	±（0.1%× reading+0.2% × range ）	±（0.1%× reading+0.2% × range ）
CR	Range Resolution		0.025Ω~100Ω	1.25Ω~5KΩ	50Ω~200KΩ	50Ω~200KΩ
			(300W/16V)	(300W/125V)	(300W/500V)	(300W/500V)
	Accuracy		12bits		12bits
	Range		100Ω：100ms+	5KΩ：20ms+	200kΩ：5ms+	200kΩ：5ms+
			0.2%×Setting	0.2%× Setting	0.1%× Setting	0.1%× Setting
CV	Range		1 ～ 60V		2.5 ～ 500V
	Resolution		0.020V		0.125V
	Accuracy		±（0.05%× setting +0.1%×range）		±（0.05%× setting +0.2%× range ）
CP	Range		1 ～ 300W		1 ～ 300W
	Resolution		0.075W		0.075W
	Accuracy		±（0.5%× setting + 0.2%× range ）		±（0.5%× setting + 0.2%× range ）
CC Dynamic	T1&T2	Range	0.025mS~10mS	1mS~30S	0.025mS~10mS	1mS~30S
		Resolution	1uS	1mS	1uS	1mS
		Accuracy	1uS+100ppm	1mS+100ppm	1uS+100ppm	1mS+100ppm
	Slope	Range	0.16~40mA/uS	1.6~400mA/uS	0.16~40mA/uS	1.6~400mA/uS
		Resolution	0.16mA/uS	1.6mA/uS	0.16mA/uS	1.6mA/uS
Short	Short Style		FET Switch		FET Switch
	Min. Short-circuit Resistance		0.025Ω		1.25Ω
	Max. Short-circuit Current		60A		10A
Measurement Display Accuracy	DC Voltage		±（0.05%×reading+ 0.05%× range ）
	DC Current		±（0.1%× reading + 0.1%×range）
	Power		±（0.5%× reading + 0.2%× range ）
Display	LCD		5 Digits Display
