Specification
AC withstand voltage (ACW): 5kVac/100mA
DC withstand voltage (DCW): 6kVdc/10mA
Insulation resistance (IR): 2.5kVdc/50GΩ
Ground bond resistance (GB): 32Aac/600m (optional 64A)
Leakage current (TCT): Leakage current 20mA and measurement network MD-A/F (IEC60335 Figure 4 and Figure 5, other networks optional)
Power test (PW): Single-phase 6kW and three-phase 20kW, Maximum current 30A
Startup test (ST): Maximum current 30A
Loop test (LN) (Optional): Low-voltage DC measurement mode/9990
DUT power supply: Built-in 20kW isolation transformer and optional external variable frequency power supply
Parallel function: GB and ACW/DCW/IR in parallel, LC and PW in parallel (single-phase)
Interface: Android system, 10-inch touch screen, and RS232\LAN USB\PLC
Dimensions (WxHxD, mm): 520×1350×630 (excluding external isolation transformer cabinet)
Product overview

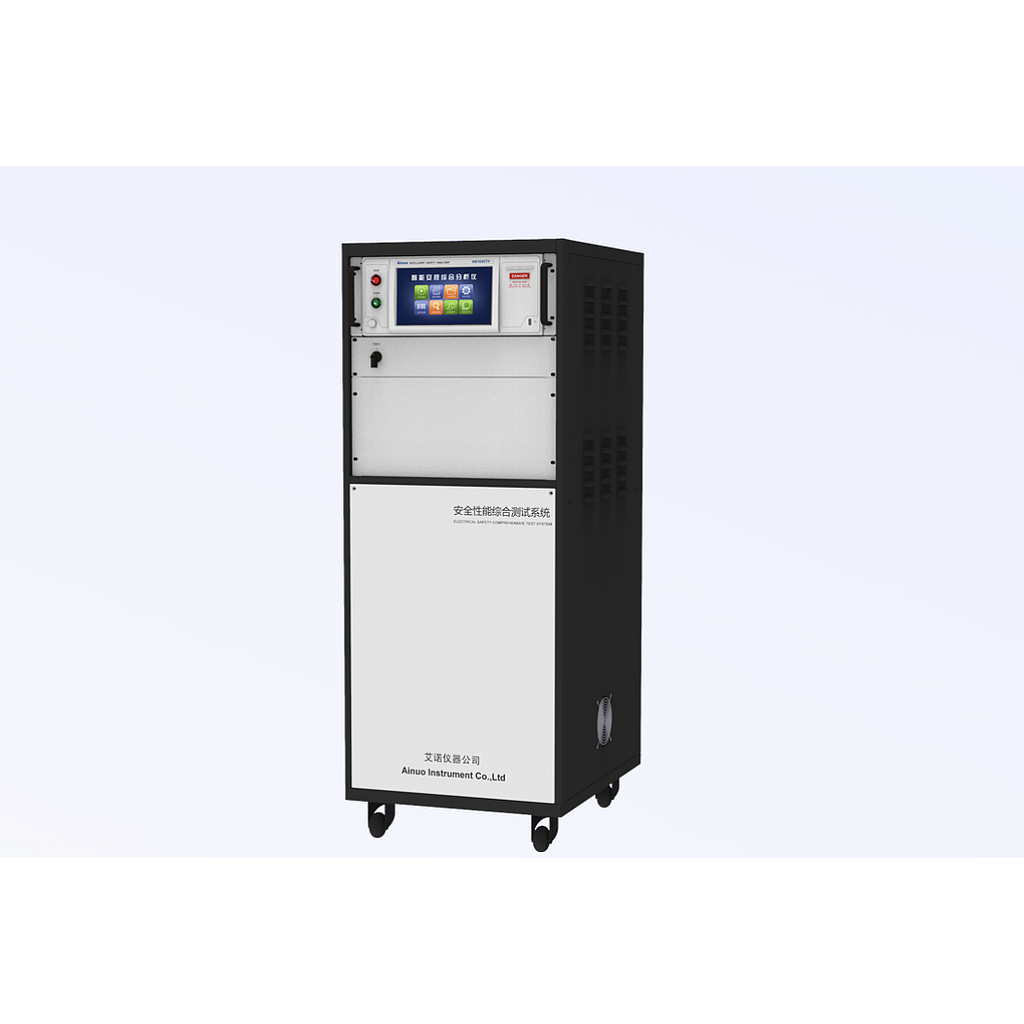

The AN1651TH Series Single-phase and Three-phase Intelligent Safety Regulation Comprehensive Analyzer from Ainuo Instrument Co., Ltd. has new features such as high velocity, high precision, and informatization, meeting the production line requirements of electrical products for high velocity, automation, informatization, and MES management. The series of products can meet the electrical safety regulation and power parameter test requirements of various three-phase electrical products such as central air conditioners, precision air conditioners, energy storage air conditioners, ground source heat pumps, and super fast chargers, and products compatible with single-phase electrical appliances.
In addition to the eight-in-one basic functions, the series products also have rich specialized functions for various industries, including LN phase sequence detection, 64A grounding test, hot withstand voltage, ground start, uninterrupted leakage power test, high-voltage DC power supply, and ANSI variable frequency power supply, etc.
The series of products are equipped with an Android intelligent platform, supporting barcode scanning, automatic recognition, program invocation, automatic startup, data storage, query, and export functions. The series of products also support various MES database connections to upload test data to the server, download test programs from the server, etc.
Product features
High reliability
The company participated in the drafting of national standards and verification regulations for 13 safety regulation products.
The company has accumulated over 30 years of professional technical expertise in safety regulation testing and a deep understanding of customer needs.
The company provides a strict electromagnetic, environmental, load, and working condition simulation test platform.
High velocity
Parallel test: parallel grounding and withstand voltage insulation tests and parallel single-phase leakage and power tests.
Quick test: quick test, quick switching, and rapid data processing.
Convenient operation: quick connection, intelligent startup, and multiple control interfaces.
Intellectualization
Intelligent platform: Android system and information management without industrial computer.
Automatic test: barcode recognition, automatic program matching, and automatic startup.
Information management: local data storage and multiple ways to connect to the database.
Product application
Electrical safety testing suitable for quality inspection departments in production lines, laboratories, central air conditioning, commercial heaters, commercial kitchen appliances,
and more.
