Specification
AC withstand voltage (ACW): 5kVac/100mA
DC withstand voltage (DCW): 6kVdc/20mA
Insulation resistance (IR): 6kVdc/100GΩ
AC resistance (GB): None
DC grounding (DCGB): Optional 40A/60A/100A DC grounding card (adding IU height for 100A chassis)
DC resistance (DCR): Optional DC low resistance test card 0.02-20.000Ω
Multi-channel switching: Optional multi-channel voltage withstand, multi-channel grounding scanning test card (if more than 1 card function is needed, chassis height needs to be increased)
Parallel function: None
Operating interface: Android system, 7-inch touch screen, and RS232 LAN\WIFI\PLC\USB interfaces
Test port: The default configuration includes only rear panel test output ports, and front panel test output ports are optional features
Dimensions (mm): 426 (W)*132 (H)*520 (D)
Product overview

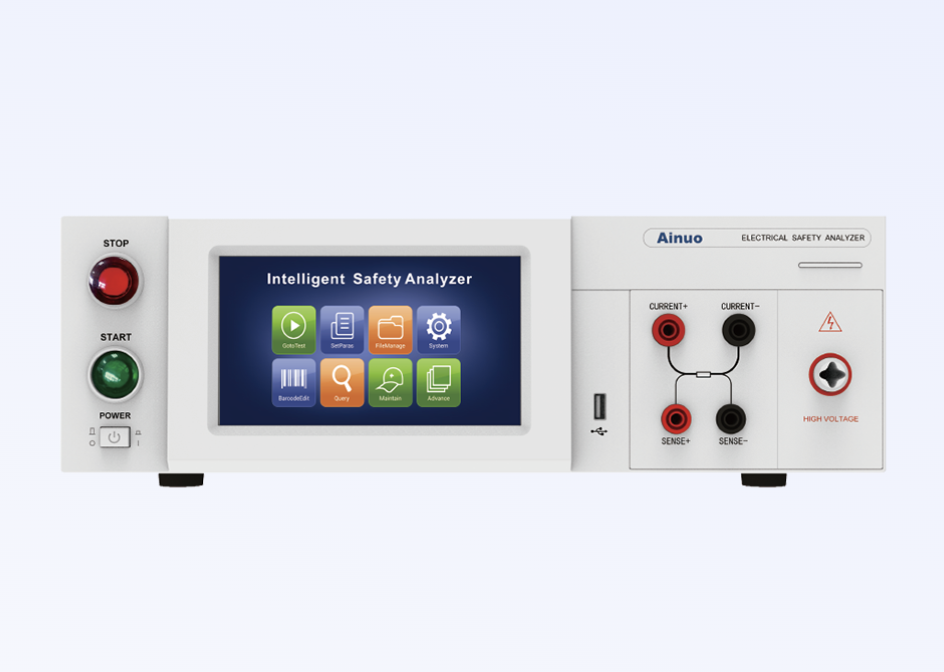

The AN163xH Series Intelligent Safety Regulation Comprehensive Analyzer from Ainuo Instrument Co., Ltd. has the characteristics of high velocity, high precision, and informatization. Its functions include AC withstand voltage, DC withstand voltage, insulation resistance, AC grounding, DC grounding test, and it combines functions such as arc detection, open and short circuit detection, capacitive load discharge, low-pass filtering, waveform display, residual voltage monitoring, GUARD/LOW mode selection, and multi-channel switching.
The series of products have a wide range of functions and ranges including AC withstand voltage 5kV/100mA, DC withstand voltage 6kV/20mA, insulation resistance 6kV/100GΩ, AC grounding 64A/600mΩ, DC grounding 40A/600mΩ, and DC low resistance 0.02-20,000Ω.
The product has intelligent platform, informatization function, and automation interface, which better meet the needs of high-quality development, intelligent manufacturing, and industrial upgrading.
The series of products can meet the safety regulation test requirements of various electrical products with multiple inputs and outputs, such as communication power supplies, module power supplies, power adapters, inverters, frequency converters, UPS, motors, electric drives for new energy vehicles, electronic controls, charging stations, power batteries, and energy storage batteries.
Five in one: multifunction combination: ACW/DCW/IR/GB/DCGB
High precision: 1% basic accuracy for safety regulation and optional waveform display
High velocity: optional parallel grounding and insulation withstand voltage tests
Informatization: Android platform, data storage, barcode recognition, and MES connection
Product features
High reliability
The company is the main drafting unit participated in the drafting of national standards and verification regulations for safety regulation products.
The company has accumulated over 30 years of professional technical expertise in safety regulation testing and has kept pace with industry demand.
The company provides a strict electromagnetic, environmental, load, and working condition simulation test platform.
High speed
Quick measurement and control: Capable of quick test, quick switching, and quick discharge.
Parallel test: Grounding and withstand voltage insulation tests conducted in parallel, doubling the speed.
Flexible configuration: Multi-channel card, DC grounding card and DC low resistance card.
Intellectualization
Intelligent safety regulation: Android system, 7-inch touch screen, and self-learning intelligent keyboard.
Automation: barcode scanning and automatic recognition, and PLC interface and I/O interface.
Informatization: data storage, MES connection and RS232/LAN/PLC interfaces.
Product application
This series of products can meet the safety testing requirements of various electrical products with multi-input and multi-output, such as switching power supplies, power adapters,
frequency converters, inverters, UPS, motors, electric drives, batteries, and charging piles.
