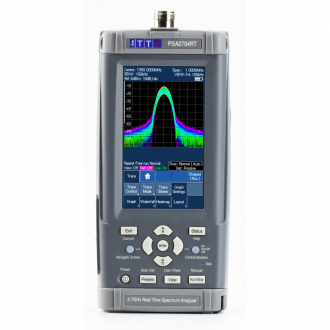

Aim TTI PSA2704RT ເຄື່ອງວິເຄາະສະເປກຕຣຳ RF ແບບມືຖື (2.7GHz)
Frequency range: 2.7 GHz
DANL: -131 dBm
Maximum input signal: +17 dBm
Real-time signal capture: 1.35 kHz to 10.8 MHz (PSA2704RT)
Swept FFT spectrum analysis alongside conventional swept mode
Seamless FFT stitching for full-span coverage at faster sweep times
Resolution bandwidth defined by frequency bin width and selectable window functions
Six window functions to optimize measurement accuracy for different applications
Seven detector modes for flexible and precise signal analysis
Zero span with AM and FM audio demodulation
Flexible display modes: full screen, combined view, or split-screen
Amplitude vs. time (Zero Span) with trace and/or waterfall display
Amplitude depth vs. time with trace and/or waterfall display
Frequency deviation vs. time with trace and/or waterfall display
Smart markers with selectable peak tracking
Frequency counter with 1 Hz resolution
AutoFind automatically sets sweep parameters for the strongest detected signal
Battery operation up to 4 hours
Limit lines and limit patterns with limit comparator
Data logging of peak values, complete traces, or screen images via timer, external trigger, or limit comparator
Sweep triggering via external trigger or limit comparator
Compensation tables, fixed offsets, and 75 Ω compensation
Custom presets
Capability to display screen contents on a PC
Modulation waveform display
Automatic measurement of CP, ACR, and OBW
