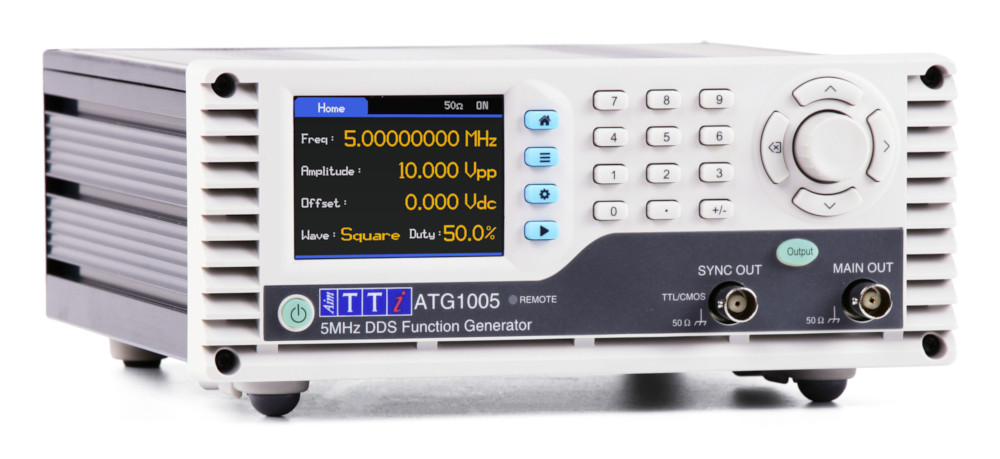

Aim TTI ATG1005 Function Generator (1 mHz~5 MHz)
Waveforms: Sine, Square, Triangle, Positive Pulse, Negative Pulse
SINE
Frequency Range: 1 mHz to 5 MHz
Frequency Resolution: 1 mHz or 9 digits
Frequency Accuracy: 10 ppm for 1 year; ±1 mHz below 0.2 Hz
Temperature Stability: Typically <1 ppm/°C outside 18 °C to 28 °C
Output Level: 2 mV to 20 Vpk-pk open circuit; 1 mV to 10 Vpk-pk into 50 Ω
Amplitude Flatness (1 Vp-p relative to 1 kHz): ≤500 kHz ±0.2 dB; ≤5 MHz ±1 dB (typically <±0.5 dB)
Harmonic Distortion (1 Vp-p): ≤500 kHz <-65 dBc; ≤5 MHz <-50 dBc (typically <-60 dBc)
Total Harmonic Distortion (DC to 20 kHz, typical): 0.05 %
Non-harmonic Spurious: <-65 dBc to 1 MHz; <-65 dBc + 6 dB/octave from 1 MHz to 5 MHz
SQUARE
Frequency Range: 1 mHz to 5 MHz
Frequency Resolution: 1 mHz or 9 digits
Symmetry: 1.0 % to 99.0 %, 0.1 % resolution
Symmetry Limitation: ≤100 kHz: 1.0 % to 99.0 %; ≤5 MHz: 20.0 % to 80.0 %
Asymmetry: 1 % of period + 10 ns
Frequency Accuracy: 10 ppm for 1 year; ±1 mHz below 0.2 Hz
Output Level: 2 mV to 20 Vpk-pk open circuit; 1 mV to 10 Vpk-pk into 50 Ω
Rise and Fall Time: <30 ns
Aberrations: <5 % + 2 mV
TRIANGLE
Frequency Range: 1 mHz to 500 kHz
Frequency Resolution: 1 mHz or 9 digits
Frequency Accuracy: 10 ppm for 1 year; ±1 mHz below 0.2 Hz
Output Level: 2 mV to 20 Vpk-pk open circuit; 1 mV to 10 Vpk-pk into 50 Ω
Linearity Error: <5 % to 100 kHz
POSITIVE AND NEGATIVE PULSE
Frequency Range: 1 mHz to 5 MHz
Frequency Resolution: 1 mHz or 9 digits
Symmetry: 1.0 % to 99.0 %, 0.1 % resolution
Symmetry Limitation: ≤100 kHz: 1.0 % to 99.0 %; ≤5 MHz: 20.0 % to 80.0 %
Asymmetry: 1 % of period + 10 ns
Rise and Fall Time: <30 ns
Aberrations: <5 % + 2 mV
Pulse Output Level: 2 mV to 10 Vpk-pk open circuit; 1 mV to 5 Vpk-pk into 50 Ω
OPERATING MODES
Continuous Mode: Continuous output at programmed frequency
Sweep Mode: Linear or logarithmic
Sweep Slope: Single or dual
Sweep Width: 0.1 Hz to 5 MHz
Sweep Resolution: 0.1 Hz
Sweep Time: 100 ms to 999 s (10 ms resolution)
Sweep Trigger: Free run or front panel trigger
Frequency Shift Keying (FSK)
Carrier Frequency: 0.1 Hz to 5 MHz
Switch Repetition Rate: DC to 10 kHz
Switching Source: Manual or internal trigger
Carrier Waveforms: All
Phase Shift Keying (Binary PSK)
Phase Range: 0.0° to 360.0°
Carrier Frequency: 1 mHz to 5 MHz
Switch Repetition Rate: DC to 10 kHz
Switching Source: Manual or internal trigger
OUTPUTS
Main Output Impedance: 50 Ω
Main Output Amplitude: 2 mV to 20 Vpk-pk open circuit; 1 mV to 10 Vpk-pk into 50 Ω
Amplitude Accuracy: ±3 % ±1 mV at 1 kHz into 50 Ω
DC Offset Range: ±10 V from 50 Ω
DC Offset Accuracy: ±3 % ±15 mV
Amplitude & Offset Resolution: 1 mV
Sync Output: Square wave at main frequency
Sync Output Impedance: 50 Ω
Logic Levels: <0.8 V and >3 V
FSK Sync Output: Outputs FSK switching frequency
PSK Sync Output: Outputs PSK switching frequency
INTERFACES
Remote Interface: USB 2.0
Protocol: SCPI compatible
USB Type: Virtual COM port
GENERAL
Display: 2.8 inch IPS TFT, 320 × 240, backlit
User Interface: Resistive touch screen, keypad and rotary encoder
Stored Settings: Up to 6 instrument setups
Power Supply: 110–240 VAC ±10 %, 50/60 Hz
Power Consumption: 30 VA max
Operating Temperature: +5 °C to +40 °C
Storage Temperature: –20 °C to +60 °C
Humidity: 20 % to 80 % RH
Environmental: Indoor use, altitude up to 2000 m, Pollution Degree 2
Safety & EMC: EN61010-1, EN61326-1 compliant
Security: Kensington lock
Dimensions: 213.3 × 230 × 98.2 mm (W × D × H)
Weight: 1.2 kg
