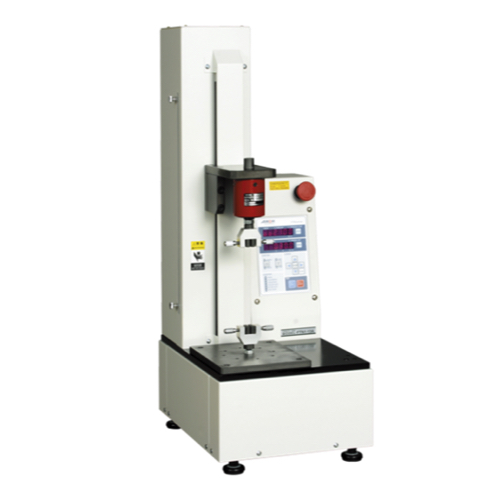

Aikoh FTN1-13A ເຄື່ອງທົດສອບແຮງກະທົບເຄື່ອງມືບນໂຕະ (500 N (50 kgf) / 2 kN (200 kgf); 390mm)

Max. force: 500N (50kgf) / 2KN (200kgf)

Force accuracy: Depends on the load cell used.

Force measuring amplifier: Built in

Controller: Built in

Test speed: 5～300mm/min / 5～125mm/min

Speed changing: Numeric input (Settable on the PC)

Stroke: 390mm

Distance between test center and column: 100mm

Table size: W174×D200mm

Drive motor: Stepping motor

Detector: Rotary encoder

Display accuracy: ±0.2mm

Dimensions: W300×D400×H823mm

Stand mass: Approx. 40 kg

Power supply: Single phase, 100VAC – 240VAC 3A

Standard set: Tester, load cell(3000 Series or UP Series) 1 piece, software FTN-3001

Options: Additional load cell, jig/fixture
