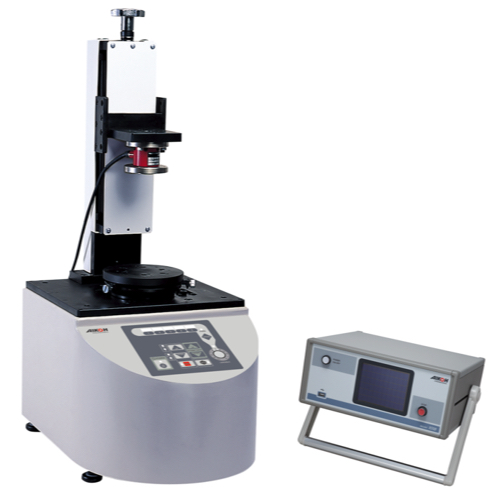

Aikoh 5125KW ເຄື່ອງທົດສອບມຸມແອນເກີ (5 N・m (0.5 kgf・m); 0.1～20RPM)

Max. output torque: 5N・m (0.5kgf・m)

Torque accuracy: 0.01N・m

Torque measuring amplifier: MODEL-1018

Controller: Built in

Test speed: 0.1～20RPM

Speed changing: 5 steps or stepless

Z-axis stroke: 210mm

Distance between rotation center and column: 110mm

Table size: Φ150mm

Drive motor: Servo motor

Detector: Rotary encoder

Angle setting: 0 – 340 degrees or continuous

Display resolution: 0.1deg

Display accuracy: 1deg

Dimensions: W350×H767×D475mm

Stand mass: Approx. 55 kg

Amplifier mass: Approx. 5.2 kg

Power supply: Single phase, 100 VAC – 240 VAC, 0.5 A

Standard set: Tester, torque measuring amplifier MODEL-1018, torque meter 1 piece

Options: Additional torque meter, jig/fixture, software
