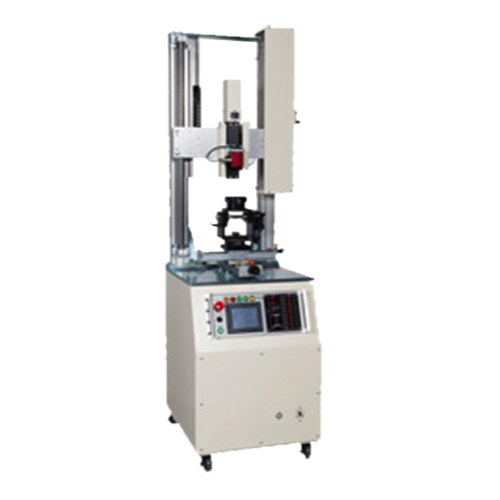

Aikoh 1910/1 ເຄື່ອງທົດສອບຄວາມຮູ້ສຶກ (200N; 3～600 mm/min)

Main unit and controller specifications

Max. load: 200N

Test speed: 3～600 mm/min. variable

Move speed: Low, middle, high

Load detection method: Load cell Model 3020

Load display resolution: 0.01N

Measuring load accuracy: ±0.2%F.S.

Distance detection method: Motor pulse

Max. measuring range: 145 mm

Distance measurement accuracy: Within ±0.05 mm

Contact ON-OFF point detection: 8 contacts, non-voltage or voltage drop point

Contact resistance measurement: Voltage drop measurement

Control: PLC

Tester – PC communication: Ethernet

Dimensions: W600 x D700 x H2052 mm

Mass: Approx. 240 Kg

Power supply: 100VAC/200VAC ±10％

Jig/fixture (Optional)

Manual X-Y stage: Manual X-Y stage±100mm

Manual tilt-horizontal rotary stage: Tilt ±90 deg, rotation 360 deg

Standard set: Tester

Load cell Model 3020

Dedicated software

Options: Personal computer

Manual X-Y stage：MODEL-1910- XY250

Manual tilt-horizontal rotary stage：MODEL-1910-TILT
