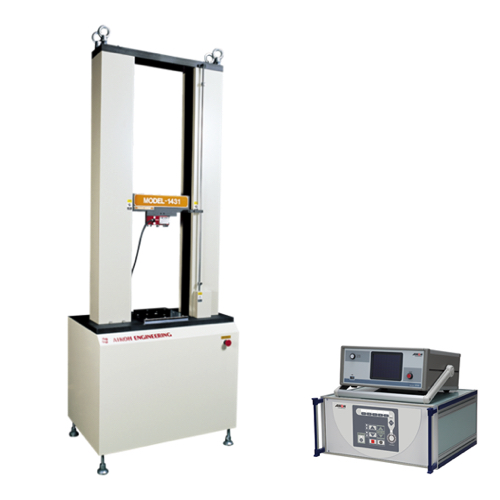

Aikoh 1431K/20000 ເຄື່ອງທົດສອບແຮງສູງ (200kN (20000kgf); 1000 mm)

Max. force: 200kN (20000kgf)

Force accuracy: Depends on the load cell used.

Force measuring amplifier: MODEL-1018

Controller: MODEL-4502K

Test speed: 0.5～300mm/min

Speed changing: 15 steps or stepless

Stroke: 1000 mm (load cell included)

Distance between test center and column: 190mm

Table size: φ290mm; M20×1.5

Drive motor: Servo motor

Detector: Rotary encoder

Display accuracy: 0.1 mm (resolution 0.01 mm)

Dimensions: W1350×H2535×D1010mm

Stand mass: Approx. 1400 kg

Amplifier mass: Approx. 5.2 kg

Power supply: 3-phase, 200 VAC, 10 A

Standard set: Tester, force measuring amplifier MODEL-1018, controller Model 4502K, load cell 1 piece

Options: Additional load cell, jig/fixture, software, safety cover
