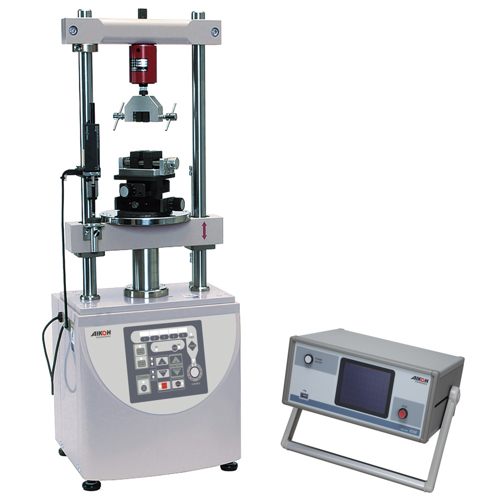

Aikoh 1311KW ເຄື່ອງທົດສອບນ້ຳໜັກເຄື່ອງຄອມພິວເຕີ (2kN (200kgf); 150mm)

Max. force: 2kN (200kgf)

Force accuracy: Depends on the load cell used.

Force measuring amplifier: MODEL-1018

Controller: Built in

Test speed: 0.2～250mm/min

Speed changing: 5 steps or stepless

Stroke: 150mm

Distance between test center and column: 125mm

Table size: φ200 mm, center M10 x 1.5

Drive motor: Servo motor

Detector: Linear gage, resolution 0.001 mm

Display accuracy: 0.05mm

Dimensions: W356×H900×D314mm

Stand mass: Approx. 41kg

Amplifier mass: Approx. 5.2kg

Power supply: Single phase, 100 VAC – 240 VAC, 5A

Standard set: Tester, force measuring amplifier MODEL-1018, load cell 1 piece, linear gage

Options: Additional load cell, jig/fixture, software, column extension
