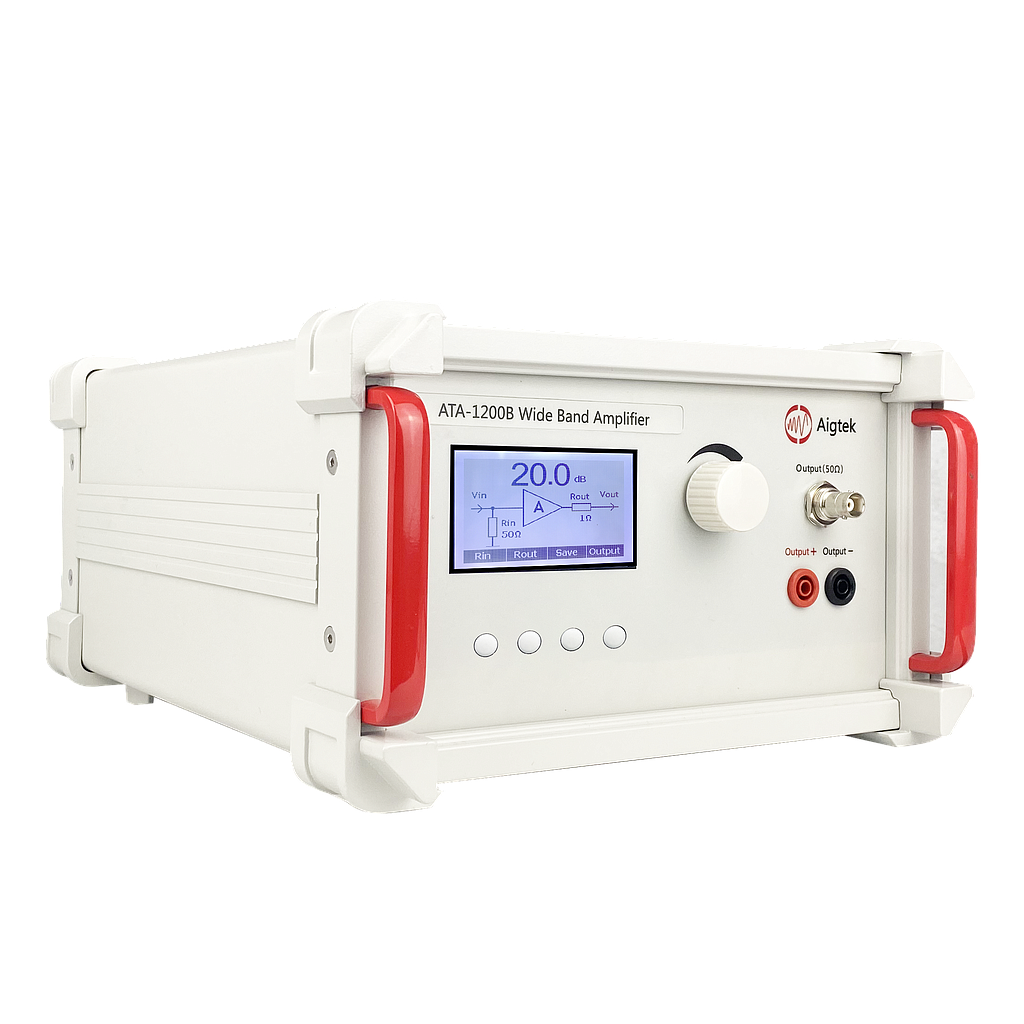

Aigtek ATA-1200B Wide Band Amplifier ((-3dB) DC~25MHz, 30Vp-p (± 15Vp), 1Ap, 15Wp, 1CH)
Output form: Single output
Bandwidth (-3dB): DC~25MHz
Maximum output voltage: 30Vp-p (±15Vp)
Maximum output current:
500mAp (DC~50Hz)
1Ap (50Hz~25MHz)
Maximum output power: 15Wp
Voltage gain: 20dB adjustable (0.5dB step)
Load RL upper limit: ≥15Ω (above 50Hz)
Slew Rate: 1665V/μs
Output resistance: 1Ω / 50Ω
Input resistance: 50Ω / 1MΩ
Input amplitude: 0~10Vp-pMAX
Output voltage error: ≤±3%FS@1kHz
Total harmonic distortion (THD): ≤0.1%@1kHz，30Vp-p
Output voltage zero-point drift: ≤0.1V
Signal-noise ratio (SNR): ≥80dB
Output Connector: BNC、4mm Banana socket
Protection: Overcurrent protection
Signal Ground: It is connected with the grounding of the shell and the power line
Supply voltage: AC220V±10%，50Hz
Fuse: 1A/250V
Operating temperature: 0℃~45℃
Storage temperature: -20℃~50℃
Humidity: ≤80%RH，no condensation
Size (W * H * D): 262*163*365mm
