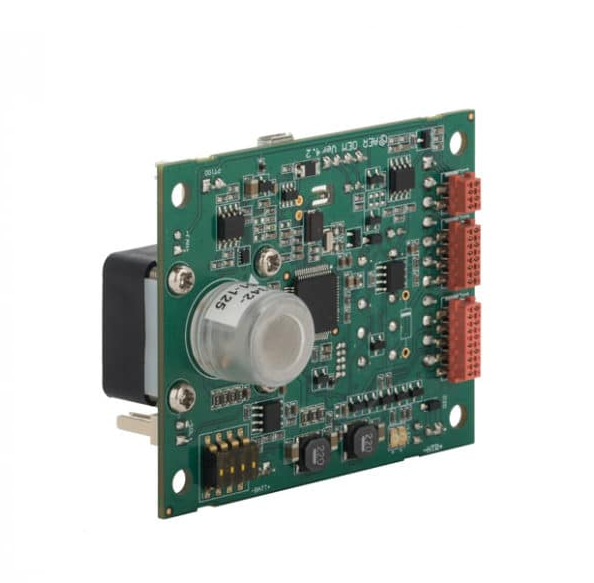

Aeroqual SM50 ວົງຈອນເຊັນເຊີ Ozone Aeroqual
Power
Input: 11 - 32 VDC
Consumption: 1 - 3 W max
Outputs
0-5V analog: 12 bit
SPDT Relay: Onboard 24VDC / 1A, NO, NC, COM
2 x LED indicators: Relay status Red = activated
Sensor status Green = normal
Green slow flash (2 seconds) = warming up
Green fast flash (0.3 seconds) = failure
RS232: 2-wire proprietary protocol (not ASCII)
RS485: 2-wire proprietary protocol (not ASCII, not networkable)
Inputs
Relay set points: 4-way dip switch
Diagnostics
If sensor failure then:-
Status LED: Fast green flash
Relay: AA version (energised) LED red
AB version (de-energised) LED off
C10 version (de-energised) LED off
0-5V analog output: 5V
Mechanical
Board Size: 60 mm x 75 mm
Mounting: Screw or extrusion slot
Fan: On-board ball-bearing 50,000 hours
Sensor filter: On-board
Environmental
Operating temperature: 0ºC to 50ºC (-20ºC to 50ºC if enclosed)
Operating humidity: 5% to 95% RH (non-condensating)
