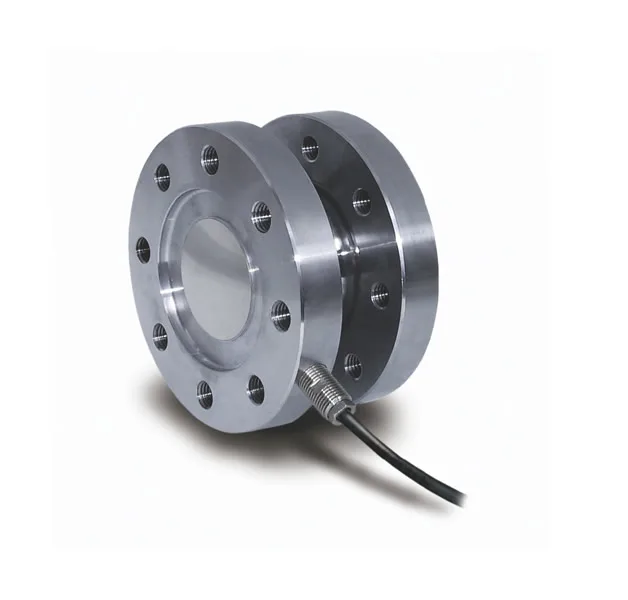

Accuracy class: EURAMET cg-14 : 0.1
Nominal Torque: 2kN·m
Relative Error (At Reading):
a) repeatability 0°-120°-240° (b): ≤ ±0.100%
b) interpolation (fa): ≤ ±0.050%
c) hysteresis (h): ≤ ±0.125%
d) zero (fo): ≤ ±0.025% F.S.
Linearity: ≤ ±0.03% F.S.
Hysteresis: ≤ ±0.03% F.S.
Temperature Effect (10°C):
a) on zero: ≤ ±0.020% F.S.
b) on sensitivity: ≤ ±0.010% F.S.
Nominal Sensitivity: 1 mV/V
Sensivity Tolerance: ≤ ±0.1% F.S.
Input Resistance: 700±2Ω
Output Resistance: 705±2Ω
Insulation Resistance: > 5 GΩ
Zero Balance: ≤ ±0.5 % F.S.
Recommended Supply Voltage: 10 V
Nominal Supply Voltage Range: 1-15 V
Maximum Supply Voltage: 18 V
Mechanical Limit Values::
a) service load: 120% F.S.
b) max permissible load: 150% F.S.
c) breaking load: >300% F.S.
d) max transverse load: 50% F.S.
e) max permissible dynamic load: 75% F.S.
Reference Temperature: +23°C
Temperature Nominal Range: 0/+60 °C
Service Temperature Range: -10/+70 °C
Storage Temperature Range: -20/+80 °C
Protection Class (En 60529): IP67
Execution Material: Stainless Steel
Cable Length: 5m
Nominal Torque: 2 kN·m
Weight : ~ 3 kg
Fixing Screws:
a) diameter: M12
b) resistance class: 12.9
c) tightening torque: 140 N·m
