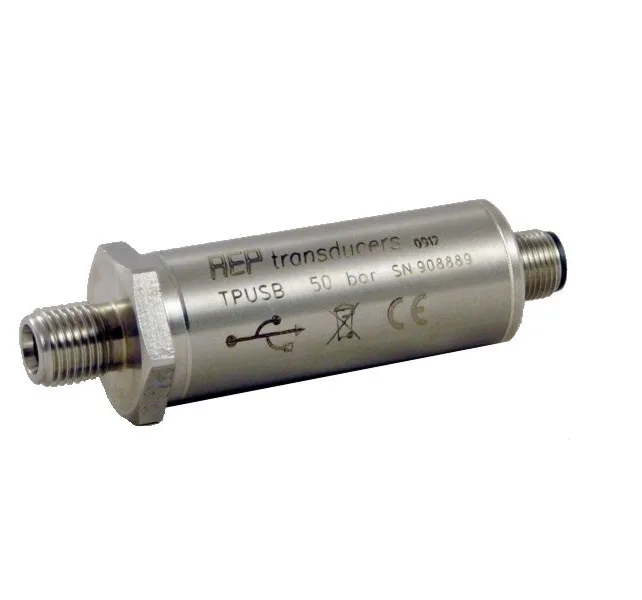

AEP Transducers TPUSB ເຄື່ອງສົ່ງຄວາມກົດດັນແລະອຸນຫະພູມ
Gauge Pressure (R) (Zero At Atmospheric Pressure): 2.5 - 5 - 10 - 20 bar
Absolute Pressure (A) (Zero At Pressure To Absolute Vacuum): 50 - 100 - 250 - 350 - 500 - 700 bar*1000 - *1500 - *2000 bar
Linearity And Hysteresis : ≤ ± 0.10 % (see options)
Internal Resolution Readings Per Seconds: 2.000.000 div. 5 - 20 - 120 - 600 - 1200 - 2400 - 4800
Temperature Indication:
Resolution: 0.1 °C
Class: ± 2 °C
Zero Function: 50%
Programmable Digital Filter: Average mobile on 1-2-4-8-16-32 points
Programmable Resolution Units Of Measurement: 1, 2, 5, 10, 20, 50, 100 mbar, bar, MPa, kPa, psi.kg/cm2, , mHg,mH2O, mmH2O
Peak Function: Pos. (+) and Neg. (-)
Temperature Effect (1°C):
a) on zero: ≤ ± 0.015%
b) on sensitivity: ≤ ± 0.015%
Nominal Power Supply : 5 Vdc Supply via USB port
Limit Mechanical Values Referred To Nominal Pressure::
a) service pressure: 100%
b) max. permissible pressure: 150%
c) breaking pressure: >300%
d) highly dynamic pressure: 75%
Reference Temperature: +23°C
Working Temperature: -10/+70°C
Storage Temperature: -20/+80°C
Process Coupling: 1/4"Gas (*1/2"Gas) Maschio / BSP Male
Tightening Wrench: 27 mm
Tightening Torque: 28 Nm
Protection Class (En 60529): IP65
Sensor Execution Material: INOX 17-4 PH
Electrical Connection: Connector M12 male
