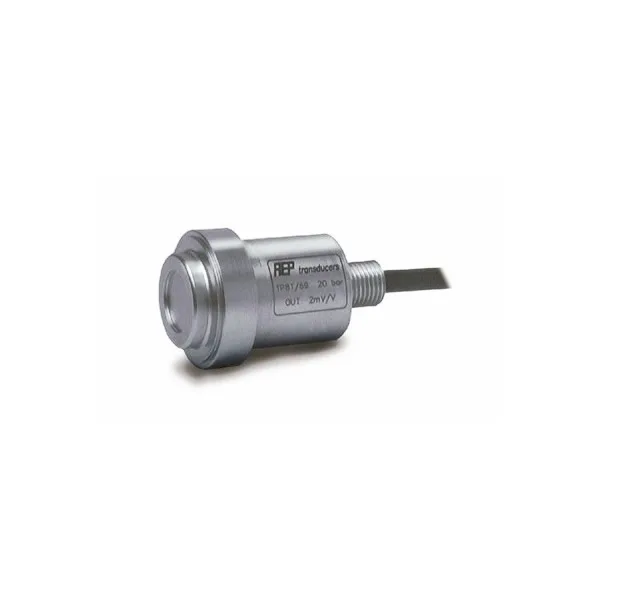

AEP Transducers TP8 ເຄື່ອງປ່ຽນຄວາມກົດດັນ (10 / 20 bar)
Relative Pressure (R) (Zero At Atmospheric Pressure) : 10 bar 20 bar
Absolute Pressure (A) (Zero At Pressure To Absolute Vacuum): 50 - 100 - 250 - 350 - 500 -700 - 1000 bar
Linearity And Hysteresis : ≤ ± 0.50 %
Temperature Effect (1°C):
a) on zero: ≤ ± 0.015%
b) on sensitivity: ≤ ± 0.015%
Nominal Sensitivity : 1mV/V 2mV/V
Calibration Tolerance : ≤ ± 0.1%
Nominal Power Supply: 1-15V
Max. Power Supply: 18V
Input Resistance: 420 Ω typical
Output Resistance: 350 Ω typical
Insulation Resistance: >2 GΩ
Zero Balance: ≤ ±0.5%
Response Frequency: from 15 to 87 kHz
Limit Mechanical Values Referred To Nominal Pressure::
a) service pressure: 100%
b) max. permissible pressure: 150%
c) breaking pressure: >300%
d) highly dynamic pressure: 75%
Reference Temperature: +23°C
Working Temperature Range: -10/+150°C
Storage Temperature Range: -20/+150°C
Process Coupling : FLANGE
Protection Class (En 60529): IP65
Sensor Execution: INOX 17-4 PH
Electrical Connection: 3m Silicon cable
