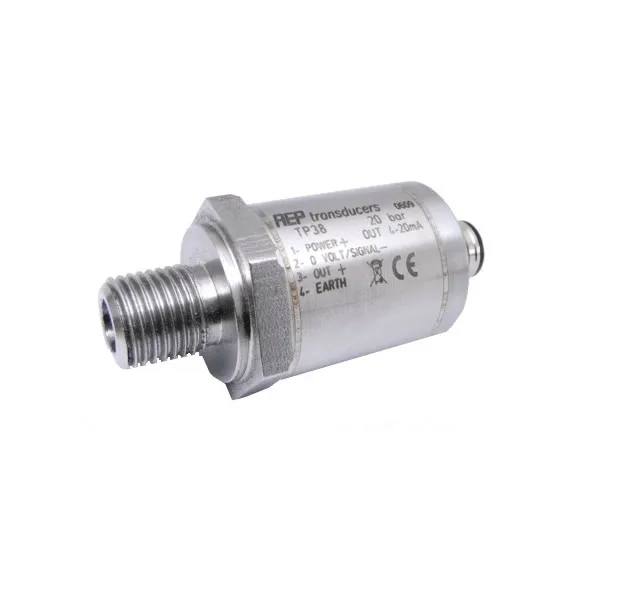

AEP Transducers TP38 ເຄື່ອງສົ່ງຄວາມກົດດັນ (0.5 - 1 - 2.5 - 5 - 10 - 20 bar)
Relative Pressure (R) (Zero At Atmospheric Pressure): 0.5 - 1 - 2.5 - 5 - 10 - 20 bar
Absolute Pressure (A) (Zero At Pressure To Absolute Vacuum) 50 - 100 - 250 - 350 - 500 - 700 Bar *1000 - *1500 - *2000 Bar:
Linearity And Hysteresis : ≤ ± 1.0 % (see options)
Temperature Effect (1°C):
a) on zero: ≤ ± 0.02%
b) on sensitivity: ≤ ± 0.02%
Nominal Sensitivity : 4-20mA (2 or 3 wires); 0.5 – 5.5 V or 0.5 - 10.5 V
Alimentazione Nominale Nominal Power Supply : 4-20mA and 0.5 - 5.5V: 12-24Vdc; 0.5 - 10.5V: 15-24Vdc
Max. Power Supply: 28Vdc
Max. Absorption 3 Wires: 30mA
Max. Absorption 2 Wires: 20mA
Loading Resistance In Tension: min. 3KΩ
Loading Resistance In Current: from 0 to 470Ω
Insulation Resistance: >2 GΩ
Zero Balance: ± 1%
Response Frequency: 1 kHz
Limit Mechanical Values Referred To Nominal Pressure::
a) service pressure: 100%
b) max. permissible pressure: 150%
c) breaking pressure: >300%
d) highly dynamic pressure: 75%
Reference Temperature: +23°C
Working Temperature: -25/+70°C
Storage Temperature: -25/+80°C
Process Coupling: 1/4"Gas (*1/2"Gas) Maschio / BSP Male
Tightening Wrench: 27 mm
Tightening Torque: 28 N•m
Protection Class (En 60529): IP67
Case Execution Material: INOX AISI 304
Sensor Execution Material: INOX 17-4 PH
Electrical Connection: M12x1 4 poles male connector
