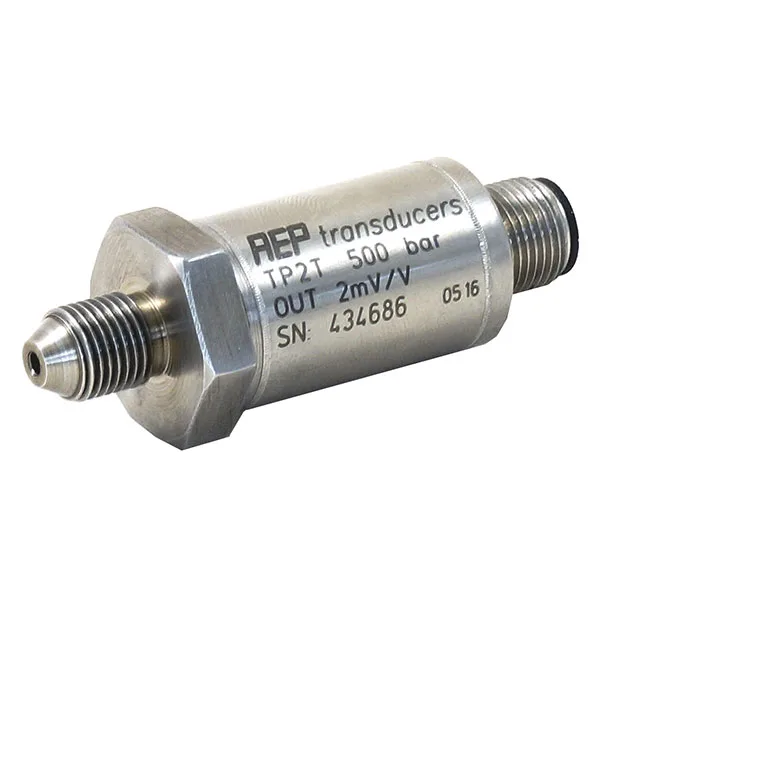

AEP Transducers TP2 ເຄື່ອງປ່ຽນຄວາມກົດດັນ (500 bar)
Absolute Pressure (A) : 50-100-250-350-500 bar
Linearity And Hysteresis: ≤ ± 0.20 %
Temperature Effect (1°C):
a) on zero: ≤ ± 0.015 %
b) on sensitivity: ≤ ± 0.010 %
Nominal Sensitivity : 2 mV/V ≤ ± 0.5%
Nominal Power Supply: 1-10 V
Max. Power Supply: 18 V
Input Resistance: 380 Ω typical
Output Resistance: 350 Ω typical
Insulation Resistance: >2 GΩ
Zero Balance: ≤ ± 1%
Response Frequency: from 20 to 100 kHz
Limit Mechanical::
a) service pressure: 100%
b) max. permissible pressure: 150%
c) breaking pressure: >300 %
d) highly dynamic pressure: 75%
Reference Temperature: +23 °C
Working Temperature Range: -10/+100 °C
Storage Temperature Range: -20/+100 °C
Standard Process Coupling: M10x1 MALE
Tightening Wrench: 22 mm
Tightening Torque: 25 Nm
Protection Class (En 60529): IP67
Sensor Execution Material: INOX 17-4 PH
Electrical Connection : M12×1 Connector
