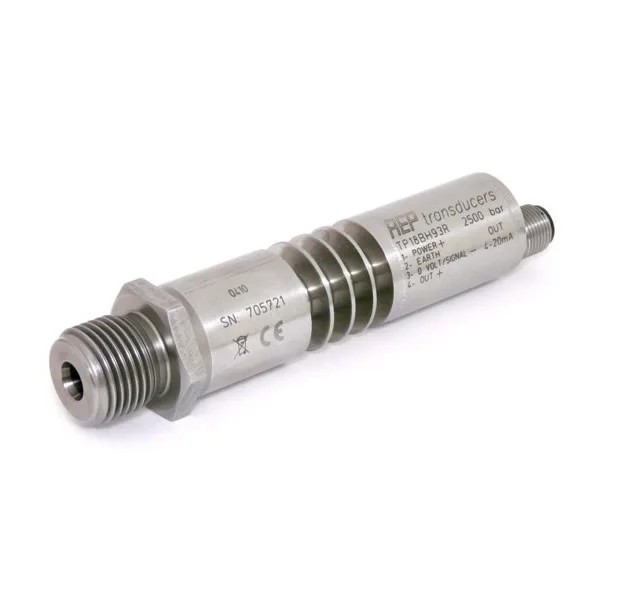

AEP Transducers TP18 ເຄື່ອງສົ່ງຄວາມກົດດັນ (2500 bar)
Relative Pressure (R) (Zero At Atmospheric Pressure): 5 - 10 - 20 bar 50 - 100 - 250 - 350 - 500 - 700 bar *1000 - *1500 - *2000 - *2500 bar
Linearity And Hysteresis : ≤ ± 0.20 %
Temperature Effect (1°C):
a) on zero: ≤ ± 0.015%
b) on sensitivity: ≤ ± 0.015%
Nominal Sensitivity: 4-20mA (3 wires); 0-5 V, 0-10 V
Calibration Tolerance : ≤ ± 0.1%
Nominal Power Supply: 4-20mA and 0-5V : 12-24Vdc; 0-10V : 15-24Vdc
Max. Power Supply: 28Vdc
Max. Absorption: 30mA
Loading Resistance::
a) tension: min. 3KΩ
b) current: from 0 to 470Ω
Insulation Resistance: >2 GΩ
Zero Balance: ± 10% ADJ.
Response Frequency: from 0.5 to 5 kHz
Limit Mechanical Values Referred To Nominal Pressure::
a) service pressure: 100%
b) max. permissible pressure: 150%
c) breaking pressure: >300%
d) highly dynamic pressure: 75%
Reference Temperature: +23°C
Medium Temperature: -10/+150°C
Ambience Temperature: -10/+70°C
Storage Temperature: -20/+80°C
Process Coupling: 1/4"Gas (*1/2"Gas) Maschio / BSP Male
Tightening Wrench: 27 mm
Tightening Torque: 28 Nm
Protection Class (En 60529): IP65
Sensor Execution Material: INOX 17-4 PH
Electrical Connection: Connector M12X1 complete of molded shielded PVC CABLE, Ø5.2mm with 4 Ø0.34mm2 conductors, shield on lock nut. Length 3m
