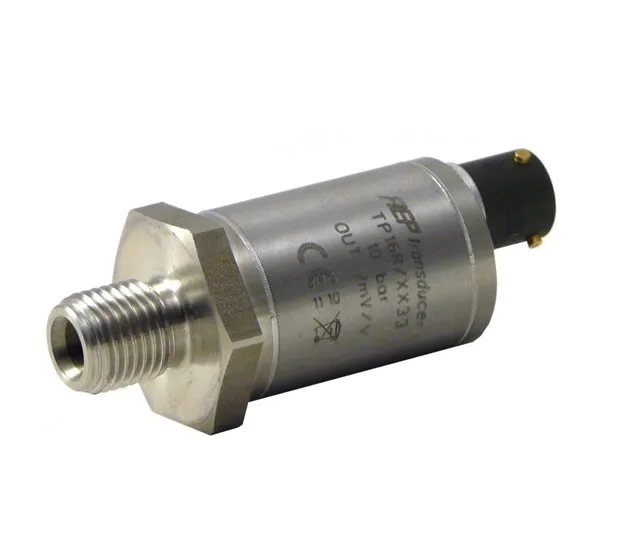

AEP Transducers TP16 ເຄື່ອງປ່ຽນຄວາມກົດດັນ
Relative Pressure (R) (Zero At Atmospheric Pressure): 5 - 10 – 20 bar
Absolute Pressure (A) (Zero At Pressure To Absolute Vacuum): 50 bar; 100 - 250 - 350 500 - 700 -*1000 *1500 -*2000 bar
Linearity And Hysteresis: ≤ ± 0.15 %; ≤ ± 0.10 %
Temperature Effect (1°C):
a) on zero: ≤ ± 0.015%
b) on sensitivity: ≤ ± 0.015%
Nominal Sensitivity : 1mV/V ≤ ± 0.1%; 2mV/V ≤ ± 0.1%
Nominal Power Supply: 1-15V
Max. Power Supply: 18V
Input Resistance: 440 ± 20Ω; 650 ± 20Ω
Output Resistance: 350 ± 2Ω; 500 ± 2Ω
Insulation Resistance: >2 GΩ
Zero Balance: ≤ ± 1%
Response Frequency: from 20 to 100kHz
Limit Mechanical Values:
Referred To Nominal Pressure::
a) service pressure: 100%
b) max. permissible pressure: 150%
c) breaking pressure: >300%
d) highly dynamic pressure: 75%
Reference Temperature: +23°C
Working Temperature Range: -10/+110°C
Storage Temperature Range: -20/+110°C
Standard Process Coupling: 1/4"Gas (*1/2” G) Maschio /BSP Male
Recommended Gasket: USIT A 63-11
Tightening Wrench: 27mm
Tightening Torque: 28 Nm
Protection Class (En 60529): IP67
Sensor Execution Material: INOX 17-4 PH
Electrical Connection: MIL4M Connector with 5m meter cable
