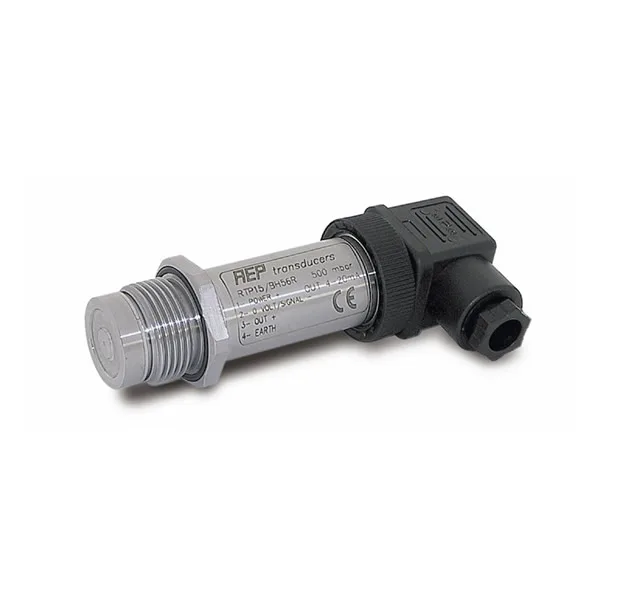

AEP Transducers TP15 ເຄື່ອງສົ່ງຄວາມກົດດັນ (1 ~50 bar)
Relative Pressure (R)( Zero At Atmospheric Pressure): 1 - 2.5 - 5 - 10 - 20 - 50 bar
Linearity And Hysteresis : ≤ ± 0.50 %
Temperature Effect (1°C):
a) on zero: ≤ ± 0.02%
b) on sensitivity: ≤ ± 0.02%
Nominal Sensitivity : 4-20mA (2 or 3 wires); 0-5 V, 0-10 V
Tolleranza Di Calibrazione Calibration Tolerance ≤ ± 0.1%:
Alimentazione Nominale Nominal Power Supply : 4-20mA and 0-5V: 12-24Vdc; 0-10V : 15-24Vdc
Max. Power Supply: 28Vdc
Max. Absorption::
a) 3 wires: 30mA
b) 2 wires: 20mA
Loading Resistance::
a) tension: min. 3KΩ
b) current: from 0 to 470Ω
Insulation Resistance: >2 GΩ
Zero Balance: ± 10% ADJ.
Response Frequency: 0.5 kHz
Limit Mechanical Values Referred To Nominal Pressure::
a) service pressure: 100%
b) max. permissible pressure: 150%
c) breaking pressure: >300%
d) highly dynamic pressure: 75%
Reference Temperature: +23°C
Working Temperature Range: -10/+70°C
Storage Temperature Range: -20/+80°C
Process Coupling : 3/4"Gas Maschio / BSP Male
Tightening Wrench: 32mm
Tightening Torque: 25 Nm
Protection Class (En 60529): IP65
Sensor Execution Material: INOX 17-4 PH
Electrical Connection: DIN 43650 Connector - A/ISO 4400
