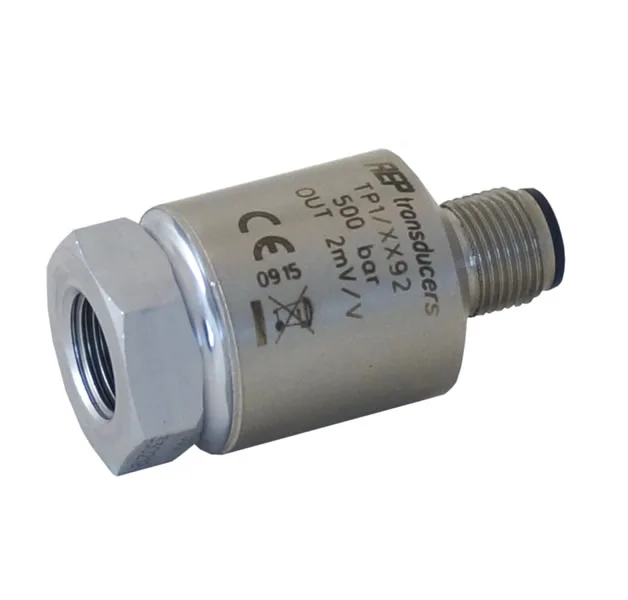

AEP Transducers TP1 ເຄື່ອງປ່ຽນຄວາມກົດດັນ
Relative Pressure (R) (Zero At Atmospheric Pressure): 10 bar ; 20 bar
Absolute Pressure (A) (Zero At Pressure To Absolute Vacuum): 50-100-250 bar ; 350-500-700 bar
Linearity And Hysteresis: ≤ ± 0.50 %; ≤ ± 0.20 %
Temperature Effect (1°C):
A) On Zero: ≤ ± 0.020 %
B) On Sensitivity: ≤ ± 0.015 %
Nominal Sensitivity: 1 mV/V≤ ± 0.5% 2 mV/V ≤ ± 0.5%
Nominal Power Supply: 1-15 V
Max. Power Supply: 18 V
Input Resistance: 560 Ω typical
Output Resistance: 500 Ω typical
Insulation Resistance: >2 GΩ
Zero Balance: ≤ ± 0.5 %
Response Frequency: from 20 to 100 kHz
Limit Mechanical Values Referred To Nominal Pressure::
A) Service Pressure: 100%
B) Max. Permissible Pressure: 150%
C) Breaking Pressure: > 300 %
D) Highly Dynamic Pressure: 75%
Reference Temperature: +23 °C
Working Temperature Range: -10 / +110 °C
Storage Temperature Range: -20 / +110 °C
Standard Process Coupling: 1/4"Gas FEMMINA /BSP FEMALE
Recommended Gasket: USIT A 63-11
Tightening Wrench: 22 mm
Tightening Torque: 25 Nm
Protection Class (En 60529): IP67
Sensor Execution Material: INOX 17-4 PH
Electrical Connection:
M12×1 Male connector (Complete of PVC molded CABLE, shielded): Length 3 m
