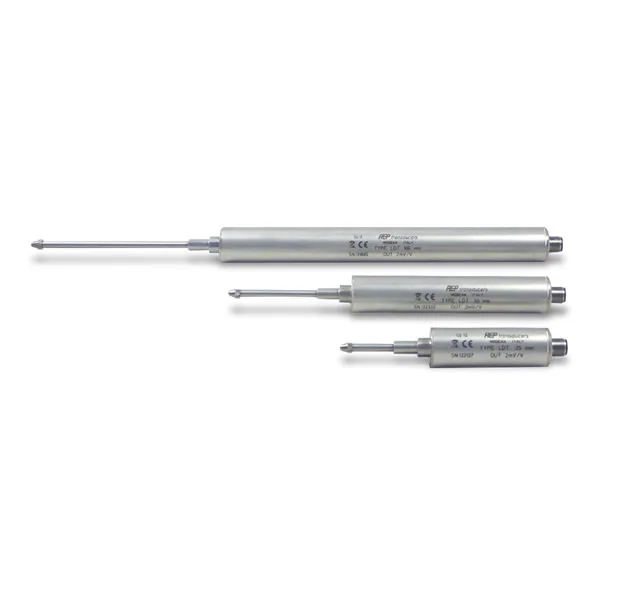

AEP Transducers LDTamp Strain Gauge Displacement Transducer (IP40; 50 mm)
Nominal Displacement: 50 mm
Nominal Sensitivity: 0.5 – 5.5 Vdc
Linearity: ≤ ± 0.10% F.S.
Nominal Power Supply: 12-24V
Max. Power Supply: 28V
Max. Absorption: 20mA
Loading Resistance: min 3KΩ
Insulation Resistance: > 2 GΩ
Zero Balance: ≤±0.5 %
Response Frequency: 150Hz
Reference Temperature: +23°C
Working Temperature: -10/+70°C
Storage Temperature: -20/+80°C
Temperature Effect (1 °C):
A) On Zero: ≤±0.010%
B) On Sensitivity: <+0.005%
Weight: ~0.150 to -0.300 kg
Spring Force: from 2 to 4 N
Protection Class (En 60529): IP40
Material: Acciaio Inox / Stainless Steel
Electrical Connection: M12 4 poles male connector
