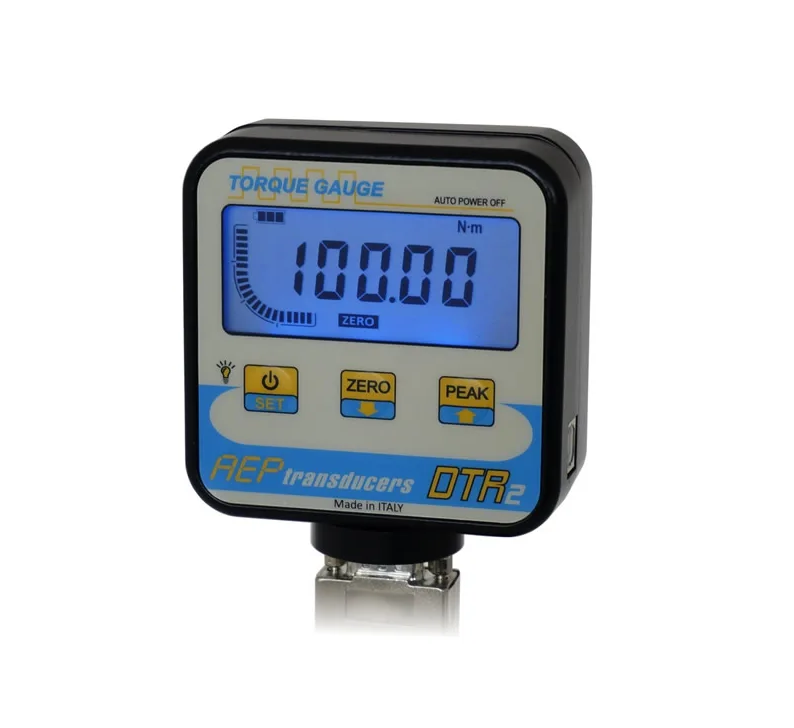

AEP Transducers DTR2 ຕົວຊີ້ວັດແຮງບິດດິຈິຕອນ
Precision Class: ≤± 0.020 %
Linearity And Hysteresis: ≤± 0.015 %
Input Signal: ± 2 mV/V
Torsiometri Collegabili: N° 1 from 350 Ω to 700 Ω 4wires
Strain Gauge Excitation : 3V ± 3%
Risoluzione Interna: 24 bit
Standard Resolution (2Mv/V): ± 20.000 div
Direct Reading: Conversion Per Second: 10 Hz
Peak Mode: Conversion Per Second: 4800 Hz
Reference Temperature: +23 °C
Service Temperature Range: 0 / +50 °C
Storage Temperature Range: -10 / +60 °C
10°C Temperature Effect:
A) On Zero: ≤± 0.015 %
B) On Sensitivity: ≤± 0.005 %
Custom Lcd Display:
Character Height 16 Mm:
Programmable Backlight From 1 To 60 Seconds:
Backlight: Led Blu:
Analog Bar Indication:
Programmable Resolution: 1, 2, 5, 10
Programmable Digital Filter: from 0 to 10 (Direct reading)
Zero Function: 100% F.S.
Peak Function: Clockwise and counterclockwise
First Peak Function Programmable: from 1 to 99% F.S.
Peak Auto Reset Programmable: clear the PEAK after a set time
Auto Power Off Function: From 1 to 30 minutes (no changes)
Key Block Function (Lock): To protect parameters from changes
Measurement Unit : kN•m - N•m - N•cm - daN•m - kgf•m -ozf•ft - lbf•ft - ozf•inch - lbf•inch
Communicaton Port: USB 2.0
Mode Continuos Transmission Mode: 4800 values per second
On Demand Transmission: On demand
Max Distance: 5 m
Power Supply By Internal Battery: Li-Ion 1800mA7h 3.6V RECHARGEABLE
Battery Recharge: Through USB
Autonomy: 80 hours
Time To Recharge: ~ 8 hours
