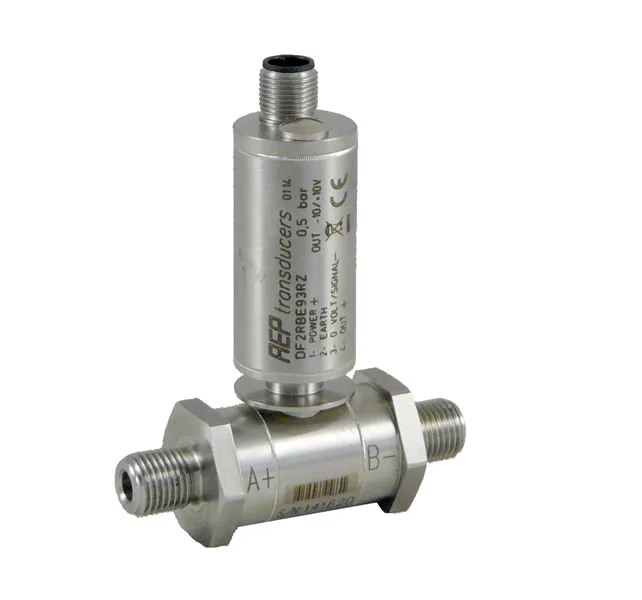

AEP Transducers DF2R ເຄື່ອງສົ່ງສັນຍານຄວາມແຕກຕ່າງ (0.1 ~ 2 bar)
Relative Pressure (R): 0.1 bar 0.5 bar 1 bar 2 bar
Service Pressure (R)X5: 0.5 bar 2.5 bar 5 bar 10 bar
Max. Permissible Pressure : 1bar 4 bar 8 bar 15 bar
Linearity And Hysteresis : ≤ ± 0.10 %
Nominal Sensitivity : 4-20mA (3 wires); ± 5 V, ± 10 V
Calibration Tolerance: ≤ ± 0.05%
Anominal Power Supply: 4-20mA and ±5V: 12-24Vdc; ±10V: 15-24Vdc
Max. Power Supply: 28Vdc
Max. Absorption:
A) 3 Wires: 30mA
Loading Resistance::
A) Tension: min. 3KΩ
B) Current: from 0 to 470Ω
Insulation Resistance : >2 GΩ
Zero Balance : ± 5% ADJ.
Reference Temperature : +23°C
Electronic Case Temperature : -10 / +70°C
Fluid Temperature Measure : -10 / +90°C
Storage Temperature Range -: 20 / +90°C
Process Coupling: 1/4" Gas Maschio
Tightening Wrench : 27 mm
Tightening Torque: 10 Nm
Protection Class (En 60529) : IP65
Sensor Execution Material: INOX 316
Electrical Connection: M12×1 + 4 poles 3m shielded cable
