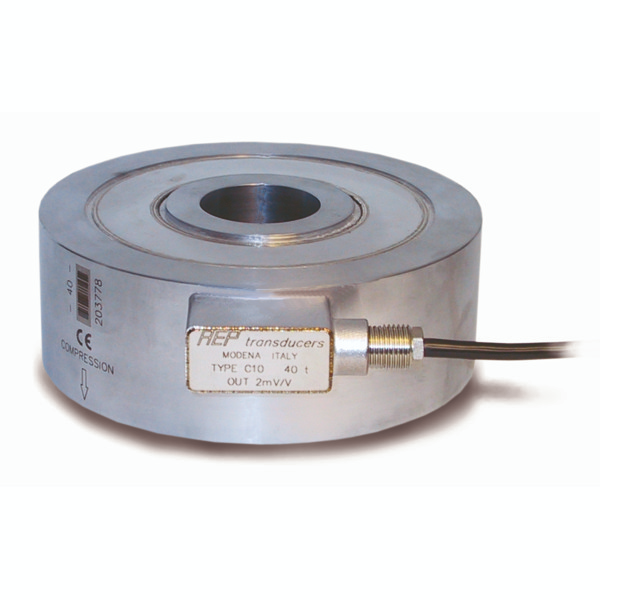

AEP Transducers C10 ບັງຄັບ Transducer (IP67; 10 kN)
Nominal Load : 10 kN
Linearity .: ≤ ± 0.10 % F.S.
Nominal Sensitivity: 2mV/V
Sensivity Tolerance: ≤ ±0.1% F.S.
Input Resistance: 800 ± 20Ω
Output Resistance: 705 ± 2Ω
Insulation Resistance: > 5 GΩ
Zero Balance: ≤ ± 1 % F.S.
Recomended Supply Voltage: 10 V
Nominal Supply Voltage: 1-15 V
Maximum Supply Voltage: 18 V
Temperature Effect (10°C):
a) on zero: ≤ ±0.028% F.S.
b) on sensitivity: ≤ ±0.024% F.S.
Reference Temperature: +23 °C
Temperature Nominal Range: -10 / +40 °C
Service Temperature Range: -10 / +70 °C
Storage Temperature Range: -20 / +80 °C
Mechanical Limit Values::
a) service load: 120%
b) max permissible load: 150%
c) breaking load: >300%
d) max transverse load: 100%
e) max permissible dynamic load: 75%
Displacement At Nominal Load: ~ 0.17 mm
Weight: ~ 4.1 kg
Protection Class (En 60529): IP67
Execution Material: Stainless Steel
Cable Output: 5 m; PVC 105°C shielded cable, Ø 5.3mm with 4
