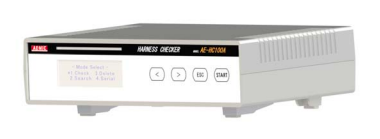

AE-MIC AE-HC100A ເຄື່ອງກວດສາຍ (100pin)
Mode: Check (AUTO)・Search (pin number manual search)
Pin number for inspection: 100pin
Memory: 30 kinds of harness data can be saved (non-volatile memory)
Inspection connector: MIL 50pin×2
Display section: 20digit×4line liquid crystal display with backlight
Quality determination and LED display（green・red）
Operation: Right or left cursor key/ESC key/START key
Buzzer: NG notice
I/O: Tip jack x1 for pin search probe, External control connector x1
Power supply: DC5V (with AC adapter),mobile battery sold on the market can also be
used
Outer dimension: 260(W)×65(H)×180(D) (excluding protruding parts such as rubber legs, etc.)
Weight: About1.1kg
External signal:
External output (quality determination output・measurement completion output)
External input (start・stop)
Option: Custom-made jig and terminal stand is available (Separate consultation
is necessary)
