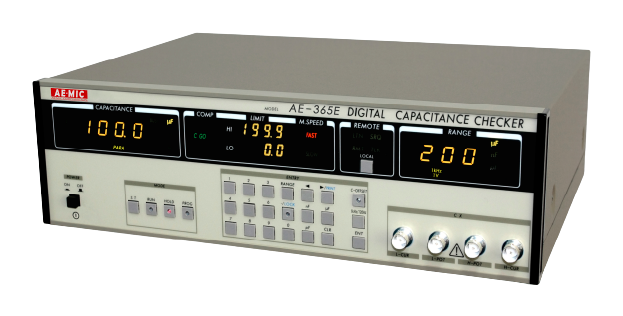

AE-MIC AE-365E ຕົວກວດສອບຕົວເກັບປະຈຸດິຈິຕອນ (0.000pF~1.199mF, 120Hz/1kHz)
Range: Measuring range/ Resolution
2pF: 0.000pF~1.999pF/ 0.001pF
20pF: 0.00pF~19.99pF/ 0.01pF
200pF: 0.0pF~199.9pF/ 0.1pF
2nF: 0.000nF~1.999nF/ 0.001nF
20nF: 0.00nF~19.99nF/ 0.01nF
200nF: 0.0nF~199.9nF/ 0.1nF
2µF: 0.000µF~1.999µF/ 0.001µF
20µF: 0.00µF~19.99µF/ 0.01µF
120µF: 0.0µF~119.9µF/ 0.1µF
200µF: 0.0µF~199.9µF/ 0.1µF
1.2mF: 0.000mF~1.199mF/ 0.001mF
Measurement Method: 3/5 terminal measurement [Available to select the measuring method on each range]
Measuring Frequency: 120Hz/1kHz±0.1%、sine wave
Output Impedance: Approx. 1Ω
Straycapacity revision range: Approx. 30pF
Temperature coefficient: Within ±100ppm/℃[f.s and zero]
Measurement time:
【Free running】FAST：Aprrox.1～5 time/sec. SLOW：FAST×N(N: The setting number of “average” )
【Start trigger signal [FAST]】1msec.[Fastest time]
Comparator set range: Capacitance：1999[120µF/1.2mF range: 1199] with HI and LO limit tanδ：99.9%
Use environment: Temperature：0℃～+50℃, Humidity：Less than 85%
Power supply: AC85V～265V, 50～60Hz、Aprrox. 50VA
Outer dimension: 333(W)×99(H)×300(D)mm
Weight: Approx. 4kg
