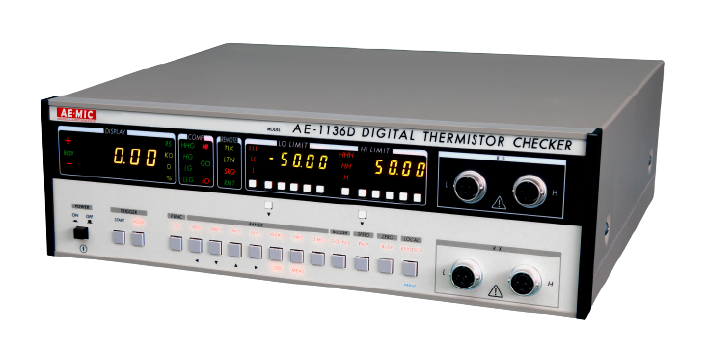

AE-MIC AE-1136D ເຄື່ອງກວດອຸນຫະພູມດິຈິຕອນ (10Ω~5MΩ, <9V)
Range: Measuring range; Resolution; Test Current
10Ω: 0.000Ω~15.000Ω; 1mΩ; 3mA
100Ω: 0.00Ω~150.00Ω; 10mΩ; 1mA
1kΩ: 0.0000kΩ~1.5000kΩ; 100mΩ; 300µA
10kΩ: 0.000kΩ~15.000kΩ; 1Ω; 100µA
100kΩ: 0.00kΩ~150.00kΩ; 10Ω; 10µA
1MΩ: 0.0000MΩ~1.5000MΩ; 100Ω; 1µA
5MΩ: 0.000MΩ~5.000MΩ; 1kΩ; 1µA
%: 1Ω~5MΩ; 0.01%; -ditto-
Voltage at terminals open: below 9V
Measuring method:
4-terminal measurement.
Scanning of Rs/Rx,
Available to make contact-check of Rs and Rx.
Measuring time:
【Free running mode】10 times/sec.[Fast],5 times/sec.[Slow]
【Remote start mode】about 7msec.[Fast] , 23~27msec.[Slow](Difference by range and mode.)
Comparator setting range : Rs/Rx test mode: 0~15000[both for the upper and lower limit]
% test mode: ±50.0%[both for the upper and lower limit]
Indication comparator’s comparison result : LO/GO/HI, LED display and buzzer.
Control signal:
input: START “L”[0V]→”H”[DC12V]⇒start
HOLD open or ”H”[DC12V]⇒freerun / “L”[0V]⇒hold
output LO/GO/HI, CONT-E and EOC/ open collector[40V/100mA max.]
Operation condition: 【Temp.】5℃~+40℃, 【Humidity】below 85%
Outer dimension: 333(W)×99(H)×300(D)mm【excluding protruding parts such as rubber legs, etc.】
Weight: about 2.6kg
Power supply: AC85V~265V, 50~60Hz, about 60VA
Option: [Only one kind of interface can be provided with the checker]
- RS-232C Interface
- GP-IB Interface
- Printer output[8 bit parallel Centronics]
