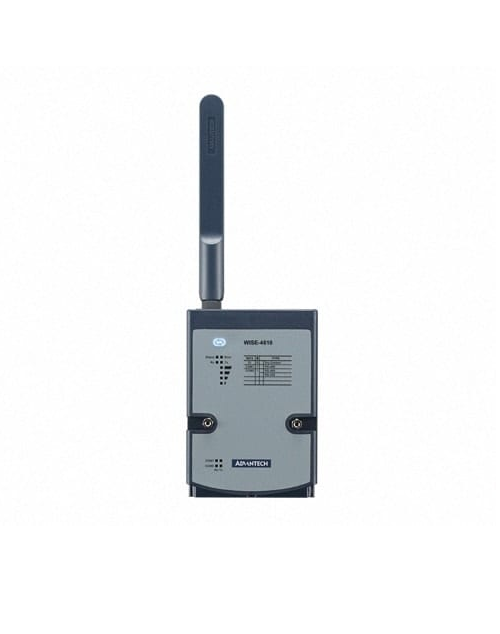

Advantech WISE-4610-S614 ໂມດູນ I/O Wireless LoRa/LoRaWAN ອຸດສາຫະກໍາ
Wireless Communication
Standard: LoRaWAN or Private LoRa
Frequency Band: EU 863-870 (MHz) / US 902-928 (MHz) /AU 915-928 (MHz) / AS 919-924 (MHz) / JP 920-928 (MHz)
Spreading Factor: 7~12
Outdoor Range: 15Km (L.o.S) by pairing with WISE-6610 (with 2 dBi Antenna)
Transmit Power: Up to +18dBm
Receiver Sensitivity: Up to -136dBm at SF = 12 / 125KHz
Data Rate:
50 kbps at FSK mode EU868
21.9 kbps at SF7 mode US915
5.47 kbps at SF7 mode JP923
Topology: Star
Function: End Node
Antenna Type: External
Battery Life:6 months (1 hour data update with WISE-S617T, RS-485 Enable only)
Configuration Interface: Micro-B USB
LED Indicator: Status, Error, Tx, Rx,Battery/Signal Level
Mounting: DIN 35 rail, wall, pole, and stack
Dimension (W x H x D): 82 x 122 x 49 mm (without antenna)
WISE-S614(4AI/4DI)
Analog Input
Channels: 4
Resolution: 16-bit
Sampling Rate: 1Hz per channel
Accuracy:
±0.1% of FSR (Voltage)
±0.2% of FSR (Current)
Input Range: ±150mV, ±500mV, ±1 V, ±5V, ±10V, 0 ~ 150mV, 0 ~ 500mV, 0 ~ 1V, 0 ~ 5V, 0 ~ 10V, 0 ~ 20mA, 4 ~ 20mA , ±20mA
Input Impedance: > 2M Ω (Voltage)
240 Ω (External resistor for current)
Isolation Voltage: 2000 VDC
Common Mode Voltage: 350 VDC
Drift Unipolar: ±100ppm
Bipolar: ±50ppm
Burn-out Detection: Yes (4~20mA only)
Supports Data Scaling and Averaging
Digital Input
Channels: 4
Input Type: Dry Contact (Wet Contact by request)
Logic Level:
0: Open
1: Close to DI COM
Compatibility: 3.3V/TTL
