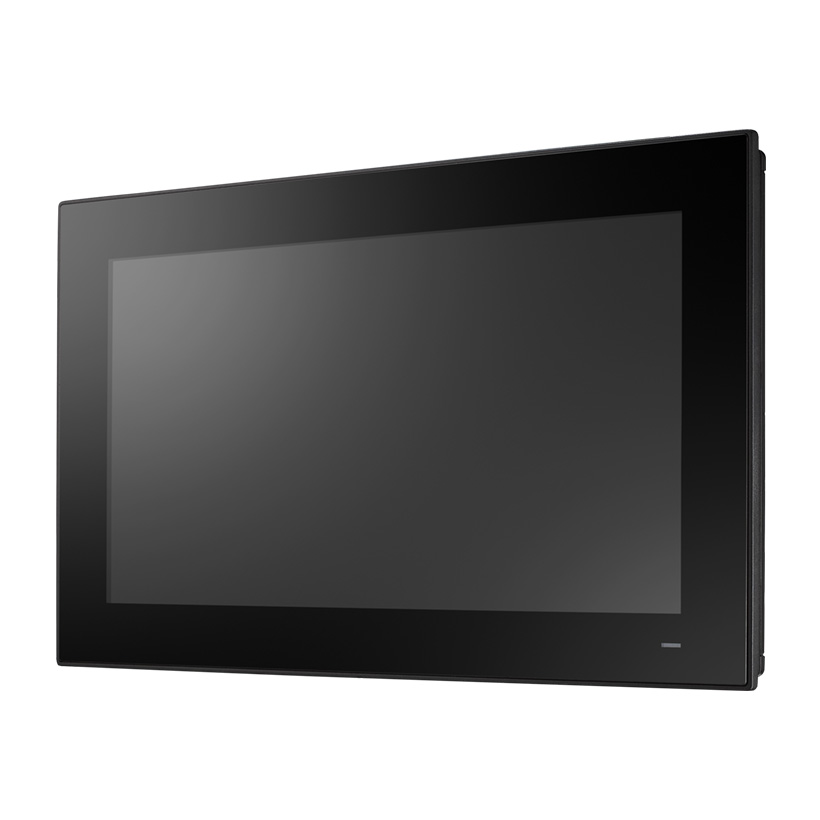

Advantech PPC-324W TGL ຄອມພິວເຕີແຜງຄວບຄຸມບໍ່ມີພັນເລີດມີຕົວປະມານ Intel Core i7 (i7; LCD 23.8 inch)
CPU: i3-1115G4E/ i5-1145G7E/ i7-1185G7E
Cores: Quad Core
Frequency: 1.8 GHz; 4.4 GHz with turbo boost
Cache: 12 MB
TDP: 15W
Memory: 2 x SO-DIMM DDR4 3200MHz (max. 32GB x 2)
Storage: 1 x 2.5 SATA bay; 1 x M.2 bay (2242/2280 NVME or SATA Interface) for storage and support SATA RAID 0, 1
Network (LAN): 1 x Intel I219LM controller; Speed: 10M / 100M / 1000M ; 1 x Intel I226LM controller; Speed: 10M / 100M / 1000M / 2500M
I/O: 2 x Serial ports: 1 x RS-232, 1 x RS-232/422/485(Adjustable through BIOS); 3 x USB 3.2, 1 x USB 2.0, 2 x USB 2.0 (internal), 1 x Type C (USB only); 1 x HDMI1.4; 1 x TPM 2.0; 1 x Line out
Speaker: 2 x 1W
Expansion: 1 x M.2 2230 E-key for wireless card
Watchdog Timer: 255 timer levels, set up by software
Dimensions: 595.9 x 347.1 x 61.5 mm (23.5 x 14.7 x 2.4 inch)
Weight: 8.6kg (18.96lb)
OS Support: Microsoft® Windows 10 IOT LTSC(64-bit), Win 11, Linux
Input Voltage: 12 ~ 30 VDC
Power Consumption: 80W (Burn-in test 8.1 in Windows 10 64-bit)
Display Type: 23.8 inch LCD (LED backlight)
Resolution: 1920 x 1080
Viewing Angle: 89 (left), 89 (right), 89 (up), 89 (down)
Backlight Lifetime: 50,000 hr (min.)
Luminance (cd/m2): 350
Contrast Ratio: 1000
Backlight Lifetime: 30,000 hr (min.)
Light Transmission: ≥88%
Controller: USB interface
Operating Temperature: -10 ~ 50 °C (14~122 °F)
Storage Temperature: -20 ~ 60 °C (-4 ~ 140 °F)
Relative Humidity: 95% @ 40 °C (non-condensing)
Shock: Operating 10 G peak acceleration (11 ms duration), follow IEC 60068-2-27
Vibration: Operating Random Vibration Test 5 ~ 500Hz, 2Grms @with SSD, follow IEC 60068-2-64
EMC: CE, FCC Class B, BSMI, VCCI, UKCA
Safety: CB, UL, CCC, UKCA
Front Panel Protection: IP66 compliant
