CPU: Intel Pentium® N4200 Quad-Core
Cores: Quad-Core
Frequency: 2.8 GHz; up to 3.9 GHz with Turbo Boost
L2 Cache: 3 MB
Memory: 1 x SODIMM, DDR3L 1600/1866, max. 8 GB
Storage: 1 x 2.5 inch SATA bay; 1 x mSATA bay
Network (LAN): 2 x 10/100/1000/2500Mbps Ethernet (Intel i225LM)
I/O: 2 x Serial ports: 1 x RS-232, 1 x RS-232/422/485; 2 x USB 3.0, 2 x USB 2.0; 1 x Line-out; 1 x HDMI
Speakers: 2 x 1W
Expansion Slot: 1 x Mini PCIe
Watchdog Timer: 255 levels, set up by software
Dimensions: 595.9 x 374.1 x 58.4 mm (23.5 x 14.7 x 2.3 inches)
Weight: 8.6 kg (18.96 lb)
Operating System: Microsoft® Windows 10 IoT LTSC (64-bit), Linux
Input Voltage: 12 ~ 24 VDC
Power Consumption: 70W

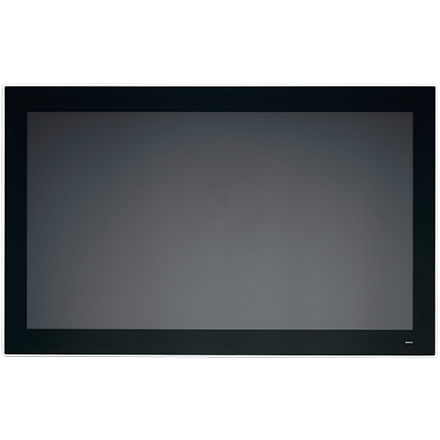

Display Type: 23.8 inch TFT LCD (LED backlight)
Resolution: 1920 x 1080
Viewing Angle: 89° (Left), 89° (Right), 89° (Top), 89° (Bottom)
Luminance (cd/m2): 350
Contrast Ratio: 1000
Backlight Lifetime: Minimum 30,000 hours
Touchscreen: 10-point multi-touch projected capacitive
Light Transmission: ≥85%
Controller: USB interface
Operating Temperature: 0 ~ 50 °C (32 ~ 122 °F)
Storage Temperature: -30 ~ 60 °C (-22 ~ 140 °F)
Humidity: 95% @ 40 °C (non-condensing)
Shock Resistance: Operating 10 G peak acceleration (11 ms duration), follow IEC 60068-2-27
Vibration Resistance: Operating Random Vibration Test 5 ~ 500Hz, 2Grms @with SSD, follow IEC 60068-2-642-64
EMC Certifications: CE, FCC Class B, BSMI, UKCA
Safety Certifications: CB, UL, CCC, UKCA
Protection Standard: IP66 compliant
