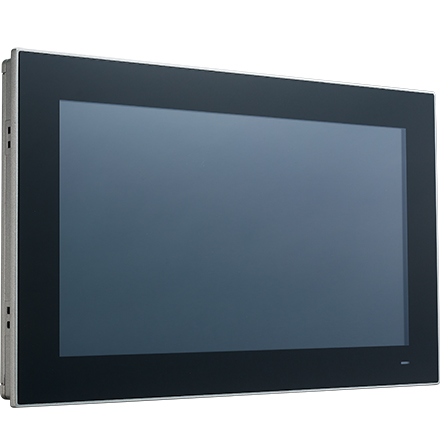

Advantech PPC-3211SW ຄອມພິວເຕີແຜງຄວບຄຸມບໍ່ມີພັນເລີດມີ Intel Core i Processor (TFT LCD 21.5 inch)
CPU: i3-6100U / i5-6300U / i7-6600U
Cores: Dual Core
Frequency: 2.3 GHz/ 2.4 GHz/ 2.6GHz
L3 Cache: 3 / 3 / 4 MB
TDP: 15W
Memory: 1 x SODIMM DDR4 1866/2133 MHz (max. 16 GB) (1.2 V)
Storage: 1 x 2.5 inch SATA bay; 1 x mSATA bay
Network (LAN): 2 x 10/100/1000 Mbps Ethernet (Realtek 8119i)
I/O: 2 x Serial ports: 1 x RS-232, 1 x RS-232/422/485(Adjustable through BIOS); 2 x USB 3.0, 2 x USB 2.0; 1 x HDMI; 1 x TPM 2.0 internal (optional)
Expansion: 1 x Full-size mini PCIe slot
Watchdog Timer: 255 timer levels, set up by software
Dimensions: 558.4 x 349.8 x 62.2 mm (21.9 x 13.7 x 2.4 in)
Weight: 6.8 kg (14.9 lb)
OS Support: Microsoft® Windows 7(32/64-bit), Windows 10 IOT LTSC(64-bit), Linux
Input Voltage: 12 ~ 24 VDC
Power Consumption: 75W
Display Type: 21.5 inch TFT LCD (LED backlight)
Resolution: 1920 x 1080
Viewing Angle: 89 (left), 89 (right), 89 (up), 89 (down)
Luminance (cd/m2): 300
Contrast Ratio: 5000
Backlight Lifetime: 50,000 hr (min.)
Touch Type: Multi-touch projected capacitive
Light Transmission: 90 % ± 2%
Controller: USB interface
Operating Temperature: 0 ~ 50 °C (32 ~ 122 °F)
Storage Temperature: -30 ~ 60 °C (-22 ~ 140 °F)
Relative Humidity: 95% @ 40 °C (non-condensing)
Shock: Operating 10 G peak acceleration (11 ms duration), follow IEC 60068-2-27
Vibration: Operating Random Vibration Test 5 ~ 500Hz, 2Grms @with SSD, follow IEC 60068-2-64
EMC: CE, FCC Class B, BSMI, UKCA
Safety: CB, UL, CCC, UKCA
Front Panel Protection: IP66 compliant
