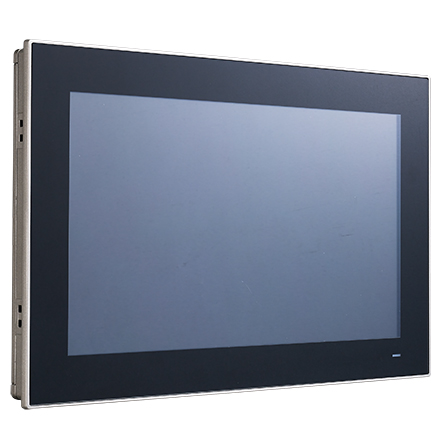

Advantech PPC-3150SW ຄອມພິວເຕີແຜງຈໍກວ້າງບໍ່ມີພັນເລີດມີຕົວປະມານ Intel Pentium N4200 Quad-Core Processor (Intel Pentium N4200; TFT LCD 15.6 inch)
CPU: Intel® Pentium® N4200
Cores: Quad core
Frequency: 1.1GHz, turbo boot to 2.5GHz
L2 Cache: 3 MB
Memory: 1 x SODIMM, DDR3L 1600/1866, max. 8 GB
Storage: 1 x 2.5 inch SATA bay (optional; requires a bracket module for installation); 1 x mSATA bay (default)
Network (LAN): 2 x 10/100/1000/2500 Mbps Ethernet (Intel I225LM)
I/O: 2 x Serial ports: 1 x RS-232, 1 x RS-232/422/485; 2 x USB 3.0, 2 x USB 2.0; 1 x Line-out; 1 x HDMI
Expansion: 1 x Mini PCIe
Watchdog Timer: 255 timer levels, set up by software
Dimensions: 419.7 x 269 x 58.6 mm (16.52 x 10.59 x 2.3 in)
Weight: 4.7 kg (10.36 lb)
OS Support: Microsoft® Windows 10 IOT LTSC(64-bit), Linux
Input Voltage: 12 ~ 24 VDC
Power Consumption: 33W
Display Type: 15.6 inch TFT LCD (LED backlight)
Resolution: 1366 x 768
Viewing Angle: 85 (Left), 85 (Right), 80 (Up), 80 (Down)
Luminance (cd/m2): 400
Contrast Ratio: 500
Backlight Lifetime: 50,000 hr (min.)
Touch Type: Multi-touch projected capacitive
Light Transmission: 90 % ± 2%
Controller: USB interface
Operating Temperature: 0 ~ 50 °C (32 ~ 122 °F)
Storage Temperature: -30 ~ 60 °C (-22 ~ 140 °F)
Relative Humidity: 95% @ 40 °C (non-condensing)
Shock: Operating 10 G peak acceleration (11 ms duration), follow IEC 60068-2-27
Vibration: Operating Random Vibration Test 5 ~ 500Hz, 2Grms @with SSD, follow IEC 60068-2-64
EMC: CE, FCC Class B, BSMI, UKCA
Safety: CB, UL, CCC, UKCA
Front Panel Protection: IP66 compliant
