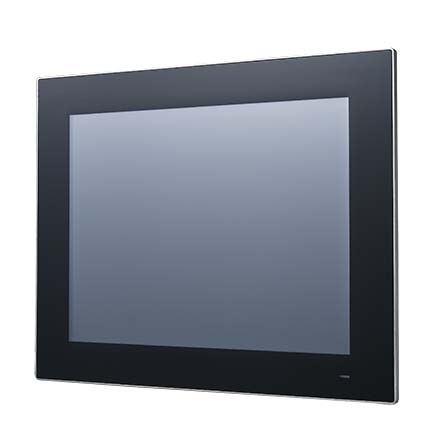

Advantech PPC-3150S ຄອມພິວເຕີແຜງບໍ່ມີພັນເລີດດ້ວຍຕົວປະມານ Intel Celeron N2930 (Intel Celeron N2930; 15 inch TFT LCD)
CPU: Intel® Celeron® N2930
Cores: Quad core
Frequency: 1.83 GHz
L2 Cache: 2 MB
Memory: Memory 1 x SODIMM DDR3L 1333 MHz (max. 8 GB)
Storage: 1 x 2.5 inch SATA bay (optional; requires a bracket module for installation); 1 x mSATA bay (default)
Network (LAN): 2 x 10/100/1000 Mbps Ethernet (Realtek 8119i)
I/O: 2 x Serial ports: 1 x RS-232, 1x RS-232/422/485 (Adjustable through BIOS); 2 x USB 2.0, 1 x USB 3.0
Expansion: 1 x Full-size mini PCIe slot
Watchdog Timer: 255 timer levels, set up by software
Dimensions: 391.36 x 312.46 x 51.5 mm (15.4 x 12.3 x 2.0 in)
Weight: 4 kg (8.8Ib)
OS Support: Microsoft® Windows 7(32/64-bit), Windows 10 IOT LTSC(64-bit), Linux
Input Voltage: 12 ~ 24 VDC
Power Consumption: 20W (Burn-in test 7.0 in Windows 7, 32-bit)
Display Type: 15 inch TFT LCD (LED backlight)
Resolution: 1024 x 768
Viewing Angle: 80 (left), 80 (right), 70 (up), 70 (down)
Luminance (cd/m2): 400
Contrast Ratio: 700
Backlight Lifetime: 50,000 hr
Touch Type: 5-wire resistive touch
Light Transmission: 80±5% at 550 nm wavelength
Controller: RS232 interface
Durability (Touches): 36 million
Operating Temperature: 0 ~ 50 °C (32 ~ 122 °F)
Storage Temperature: -30 ~ 60 °C (-22 ~ 140 °F)
Relative Humidity: 95% @ 40 °C (non-condensing)
Shock: Operating 10 G peak acceleration (11 ms duration), follow IEC 60068-2-27
Vibration: Operating Random Vibration Test 5 ~ 500Hz, 2Grms @with SSD, follow IEC 60068-2-64
EMC: CE, FCC Class B, BSMI, UKCA
Safety: CB, UL, CCC, UKCA
Front Panel Protection: IP66 compliant
