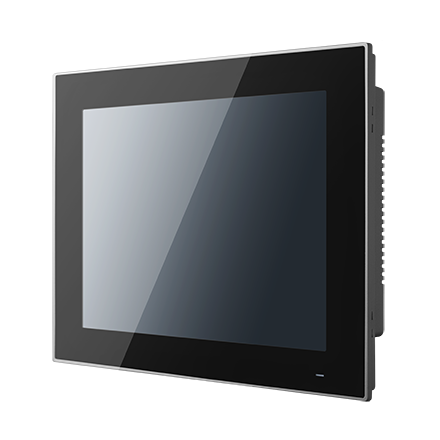

Advantech PPC-3100S-Pxx ຄອມພິວເຕີແຜງບໍ່ມີພັນເລີດດ້ວຍຕົວປະມານ Intel Celeron N2930 (Intel Celeron N2930; 10.4 inch)
CPU: Intel® Celeron® N2930
Cores: Quad core
Frequency: 1.83 GHz
L2 Cache: 2 MB
TDP: 15W
Memory: 1 x SODIMM DDR3L 1333 MHz (max. 8 GB)
Storage: 1 x 2.5 SATA bay (optional; requires a bracket module for installation); 1 x mSATA Bay (default)
Network (LAN): 2 x 10/100/1000 Mbps Ethernet (Realtek 8119i)
I/O: 2 x Serial ports: 1 x RS-232, 1x RS-232/422/485 (Adjustable through BIOS); 2 x USB 2.0, 1 x USB 3.0 (for PPC-3100S-Rxx); 1 x USB 2.0, 1 x USB 3.0 (for PPC-3100S-Pxx)
Expansion: 1 x Full-size mini PCIe slot
Watchdog Timer: 255 timer levels, set up by software
Dimensions: 272 x 217 x 46 mm (10.7 x 8.5 x 1.8 in)
Weight: 1.9 kg (4.18 lb)
OS Support: Microsoft® Windows 7(32/64-bit), Windows 10 IOT LTSC(64-bit), Linux
Input Voltage: 12 ~ 24 VDC
Power Consumption: 16W (Burn-in test 7.0 in Windows 7, 32-bit)
Display Type: 10.4\\
Resolution: 1024 x 768
Viewing Angle: 88 (left), 88 (right), 88 (up), 88 (down)
Luminance (cd/m2): 350
Contrast Ratio: 1200
Backlight Lifetime: 30,000 hr (min.)
Touch Type: 5-point multi-touch projected capacitive
Light Transmission: 88±2%
Controller: USB interface
Durability/Surface Hardness: Cover glass > 7H
Operating Temperature: 0 ~ 50 °C (32 ~ 122 °F)
Storage Temperature: -30 ~ 60 °C (-22 ~ 140 °F)
Relative Humidity: 95% @ 40 °C (non-condensing)
Shock: Operating 10 G peak acceleration (11 ms duration), follow IEC 60068-2-27
Vibration: Operating Random Vibration Test 5 ~ 500Hz, 2Grms @with SSD, follow IEC 60068-2-64
EMC: CE, FCC Class B, BSMI, UKCA
Safety: CB, UL, CCC, UKCA
Front Panel Protection: IP66 compliant
