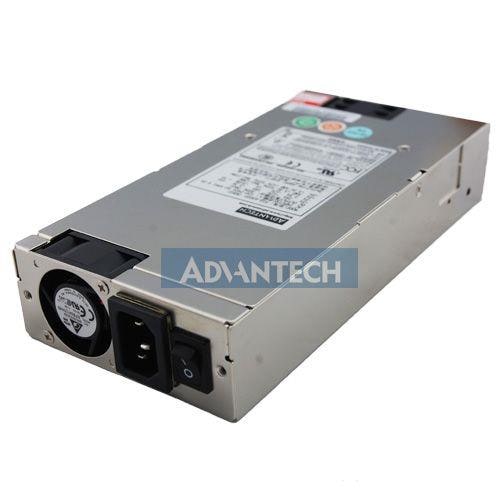

Advantech 96PS-A300W1U ອຸປະກອນຈຳລອງພະລັງງານປ່ຽນແປງ ZIPPY SPS 100-240V 300W W/PFC ATX 1U

Width: 100 mm (3.937 in)

Height: 40.5 mm (1.594 in)

Length: 205 mm (8.071 in)

Industry: Industrial

Approvals: IEC60950-1, UL60950-1

Compliance: IEC60950-1, UL60950-1

Unit Weight: 1.406 kg

Output Power: 300 W

Input Voltage: 100 VAC to 240 VAC

Mounting Style: Chassis

Input Frequency: 50 Hz to 60 Hz

Number of Outputs: 6 Output

Open Frame/Enclosed: Enclosed

Output Current-Channel 1: 14 A

Output Current-Channel 2: 25 A

Output Current-Channel 3: 16 A

Output Current-Channel 4: 1 A

Output Voltage-Channel 1: 3.3 VDC

Output Voltage-Channel 2: 5 VDC

Output Voltage-Channel 3: 12 VDC

Output Voltage-Channel 4: - 12 VDC
