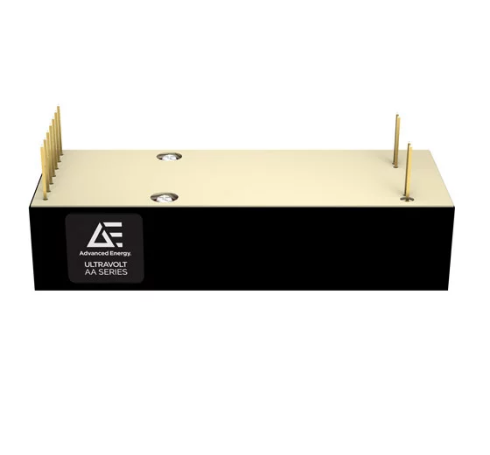

Input (12V; 24V):
- Voltage Range: Full Power: +11 ~ 16VDC; +23 ~ 30VDC
- Voltage Range: Derated Power Range: +9 ~ 32VDC; +9 ~ 32VDC
- Current:
Standby / Disable: < 30mA
No Load, Max Eout: < 100mA (4 W); 150mA (20 and 30 W)
Max Load, Max Eout: < 450mA (4 W); < 1000mA (20 W)/ < 1500mA (30 W)
- AC Ripple Current: Nominal Input, Full Load, < 80mA p-p
Output
- Voltage range: 0 ~ 500VDC
- Nominal Input Voltage: 12, 24, 24VDC
- Power: Nominal Input, Max Eout: 4, 20, 30W
- Current: Iout Entire Output Voltage Range: 8, 40, 60mA
- Current Scale Factor: Full Load, 0.79, 17.78, 17.65mA/V
- Voltage Monitor Scaling: 10:1 ± 2% into 10 MΩ
- Ripple: Full Load, Max Eout: 0.01, 0.01, 0.011%V p-p
- Line Regulation: Nom. Input, Max Eout, Full Power: < 0.01 %
- Static Load Regulation: No Load to Full Load, Max Eout: < 0.01%
- Stability: 30 Min. warmup, per 8 hr/ Per Day: < 0.01%/< 0.02%
Programming & Controls
- Input Impedance: Nominal Input
+ output models 1.1 MΩ ~ GND, - output models 1.1 MΩ ~ +5 Vref
- Adjust Resistance: Typical Potentiometer Values:
10 ~ 100 K (Pot. across Vref. and signal GND, wiper to adjust)
- Adjust Logic: 0 ~ +5 for +Out, +5 ~ 0 for - Out
+4.64 VDC for +output or +0.36 for -output = nominal Eout
- Output Voltage & Impedance: T=+25°C
+ 5.00 VDC ± 2%, Zout = 464 Ω ± 1%
- Enable/Disable: 0 ~ +0.5 disable, +2.4 ~ 32 enable (default = enable)
Environmental:
- Operating: Full Load, Max Eout, Case Temp: -40 ~ +65°C
- Coefficient Over the Specified Temperature: ±50PPM/°C (±25 optional)
- Thermal Shock: Mil-Std 810, Method 503-4, Proc. II: -40 ~ +65°C
- Storage: Non-Operating, Case Temp.: -55 ~ +105°C
- Humidity All Conditions, Standard Package: 0 ~ 95%, non-condensing
- Altitude Standard Package, All Conditions: Sea level through vacuum
- Shock: Mil-Std-810, Method 516.5, Proc. IV: 20Gs
- Vibration: Mil-Std-810, Method 514.5, Fig.14.5C-3: 10Gs
- Volume: 54.8cm3, 3.34in3
- Weight: 114g, 4.0oz
- Tolerance:
Overall: ±1.27 mm (0.050")
Pin to Pin: ±0.38 mm (0.015")
Mounting Hole Location: ±0.64 mm (0.025")
