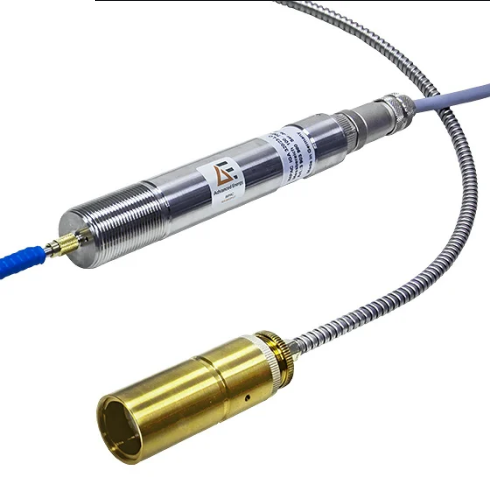

Advanced Energy IGA 320/23-LO ຄໍາຮ້ອງສະຫມັກໂລຫະ Pyrometer (85 ~ 1200°C)

- Temperature Range:
85 ~ 600°C (185 ~ 1112°F) (MB 6)
100 ~ 700°C (212 ~ 1292°F) (MB 7)
150 ~ 1200°C (302 ~ 2192°F) (MB 12)
- Optics:
3 optical heads:
Optics I: 3 fixed distances
Optics II: 4 fixed distances
Optics II: 6 focusable optics
- Spectral Ranges: 2 ~ 2.6 μm (main wavelength 2.3 μm)
- Resolution:
0.1°C on interface
< 0.025% of the adjusted temperature sub range at the analog output
- Measurement Uncertainty (ε = 1, t90 = 1 s, Tamb = 23°C):
< 400°C: 2°C
> 400°C: 0.3% of measured value in °C + 1°C
- Repeatability (ε = 1, t90 = 1 s, Tamb = 23°C): 0.1% of measured value in °C + 1°C
- Emissivity ε: 10.0 ~ 100.0%, adjustable via interface in steps of 0.1%
- Transmittance t: 10.0 ~ 100.0%, adjustable via interface in steps of 0.1%
Interface:
- Connection: 8-pin connector
- Sighting: Built-in LED targeting light (default continuously on)
Communication:
- Analog Output: 0 ~ 20 or 4 ~ 20 mA (linear), switchable
- Digital Interface: RS485 addressable (half duplex); baud rate 1200 up to 38,400 Bd or RS232; baud rate 1200 up to 115,200 Bd
- Exposure Time t90: 2 ms (with dynamic adaptation at low signal levels); adjustable to 0.01 s, 0.05 s, 0.25 s, 1 s, 3 s, 10 s
Electrical:
- Power Supply: 24 VDC (10 ~ 30 VDC), ripple must be less than 0.5 V
- Power Consumption: Max 1 W
- Switch Contact: Opto relays; max. 50 VDC, 0.2 A; Pmax = 300 mW
- Hystersis: 2 ~ 20°C
- Load (Analog Output): 0 ~ 500 Ω
- Connection Cable: 2 ~ 30 m length, connection via connector
Environmental
- Protection system: IP65 (according to DIN 40 050)
- Ambient Temperature:
0 ~ 70°C (32 ~ 158°F) at housing
Up to 200°C (392°F) on side of fiber and optical head
- Storage Temperature: -20 ~ 70°C (-4 ~ 158°F)
- Weight: 0.53 kg (≈1.17 lb) including optical fiber and lens assembly
- CE Label: According to EN 61326-1:2006-10
- Scope of Delivery: Pyrometer, optical fiber and optical head as per configuration, works certificate, PC software InfraWin, and user manual.
