DESCRIPTION

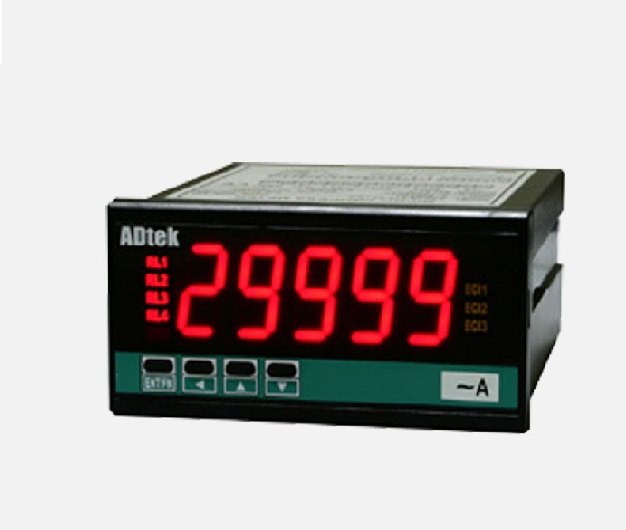

CS2-VA Voltage/Current Indicator has been designed with high
accuracy measurement, display and communication of 0~600V or
0~10A for DC/AC/TMRS.
; Adtek builds flexible function as like as 3 bank (for multi-range
scaling and set point) and 3 external control inputs meet to various
testing equipment inquiry.
They are also build in 4 Relay outputs, 3 External Control Inputs, 1
Analogue output and 1 RS485 (Modbus RTU Mode) interface with
versatile functions such as control, alarm, re-transmission and
communication for a wide range of industrial applications.
FEATURE
● Measuring Voltage 0~600V or Current 0~10A for DC / AC / TRMS
● Optional 4 banks pre-set for all relay functions are relative to 4 difference scaling, and selectable by 3
External Control Inputs(E.C.I.) or front key
● 4 relay can be programmed individual to be a Hi / Lo / Hi Latch / Lo Latch / Go energized with Start Delay /
Hysteresis / Energized & De-energized Delay functions, or to be a remote control.
● Analogue output and RS 485 communication port in option
● 3 external control inputs can be programmed individual to be Relative PV (Tare) / PV Hold / Maximum or
Minimum Hold / DI (remote monitoring) / Reset for Relay Energized Latch….
● CE Approved & RoHS
APPLICATIONS
●Testing Equipments for Volt/Current Measuring, Alarm, Control and Communication with PC/PLC
; Flexible 3 DI functions as like as Maximum/Minimum hold, PV hold and Relative PV.
; 4 Relay functions as like as Hi / Lo / Go with on and off delay time from 0.0(s)~ 9(m):59.9(s)
; 3 Banks preset for individual Hi / Lo scale, decimal point and 4 relay energized level and functions.
●MCC panel, Machinery, Switch gear... for Voltage or Current Measuring, Alarm and Remote I/O with PC/PLC
; Fantastic 4 Relay functions as like as Hi / Lo / Hi latch / Lo latch / DO(Remote control by PC/PLC).
; Flexible 3 DI functions as like as Reset for Relay energized and Remote monitoring by PC/PLC.
