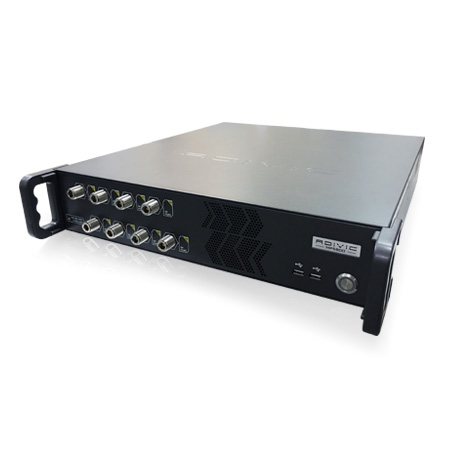

Adivic MP5806 ການແກ້ໄຂການທົດສອບໄຮ້ສາຍ (Instant upgrade RF ATE tester)

Features

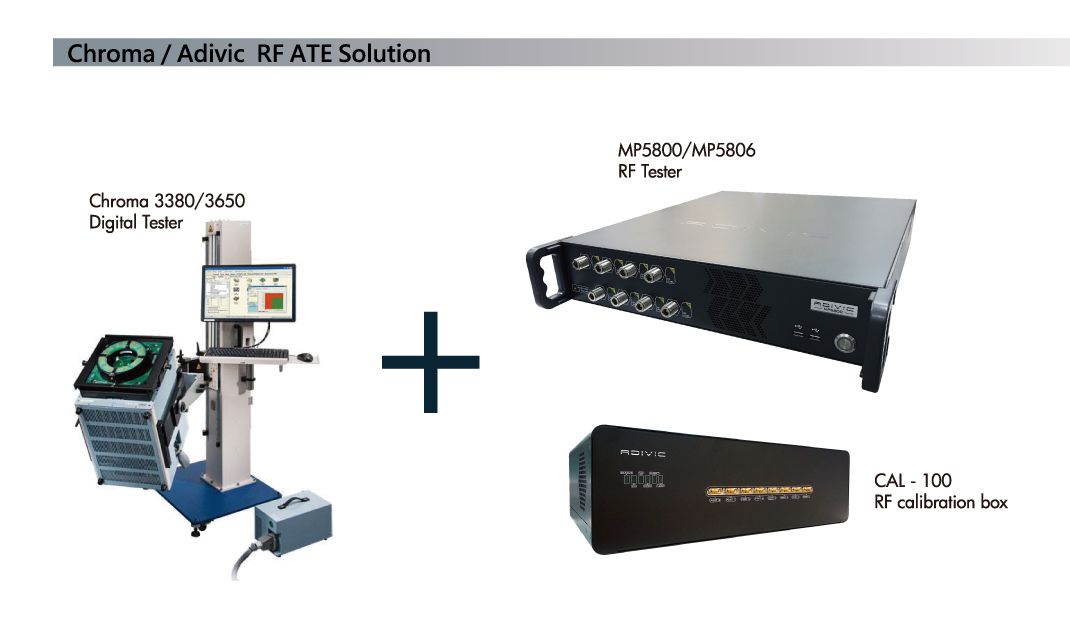

• MP5800/MP5806 seamlessly upgrades your existing Chroma 3380/3650 to RF ready ATE test solution.

• User friendly debug tools

• IOT turnkey test solution

• Able to generate complex waveforms to verify receiver performance

• VSA decodes complex modulation.

• Built in 802.11 & 802.15 Signal generator & analyzer

• Fully programmable VSA/VSG across 10MHz to 6ghz frequency.

• Intuitive tools to create custom waveforms

Function Features

• Software Defined Radio(SDR) architecture with VSG/VSA in one Box

• RF Port Support Bi-Directional & TX Broadcast function

• Support Wi-Fi/BT…etc. standards & General Purpose Modulation

• Build-in arbitrary waveform generator & Debug Tools

• Support Calibration Box for auto cable loss test & Power Meter function

• User friendly GUI for R&D/QA applications

• API for production automation programming

• Integrated with Chroma 3380/3650 to build a full RF/Digital ATE turnkey solution

Brochure

Major Applications

◎ IOT Applications

‧Wi-Fi 802.11a/b/g/n/ac/ax

‧luetooth V1.x/V2.x/V3.x EDR/BLE V4.x /V5.1

‧Zigbee

‧GNSS

‧NB-IoT

‧802.11ah, 802.11p, 802.11af…etc

◎ Converter Applications

‧TV Tuner, DVB Tuner, FM Tuner...etc

◎ PA / FEM Applications

‧PA , LNA, Switch…etc

Key Specifications

◎ RF Performance (MP5800/MP5806)

‧4/8 RF Port@ one tester

‧RF Bandwidth : 120MHz(160MHz option)

‧Frequency range : 10MHz ~ 6000MHz

◎ Digital Performance (3360/3380/3650/3680)

‧50/100MHz Clock Rate

‧Maximum 1024 I/O Pins

‧32/64/128MHz Pattern Memory

‧Maximum 128 CH DPS

‧SCAN/ALPG Function

‧Maximum 1024 DUT Parallel test

‧Flexible configuration

◎ Auto RF Calibration ( RF Calibration box)

‧Support automatic RF cable loss testing & Power Meter function
