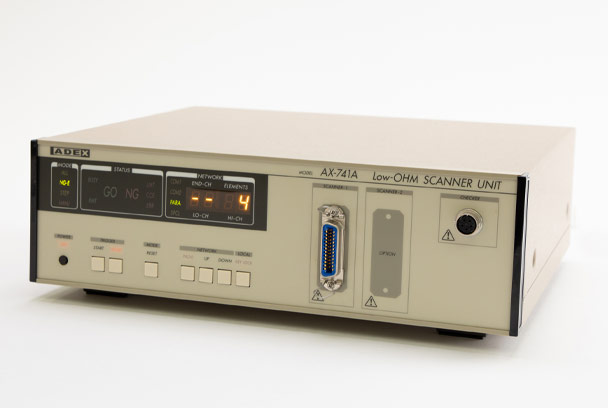

ADEX AX-741A ເຄື່ອງສະແກນຄວາມຕ້ານທານຕໍ່າ (3A; 0.18Ω max)
1. Scanner section
Channel configuration: Current Scanner + Voltage Scanner
Scanner ability for low resistance: 3A/0.18Ωmax Photo MOS relay
Voltage scanner capability: 0.15A/15Ωmax Photo MOS relay
Operating time: 5mSmax
Channel number: Standard:10ch,can expand to 20 ch with the option
Measuring device connection: 5p round connector x 1 (AX-1156A,AX-1152D(9V specification) compatible)
2. Measurement network
(1) 1 COMMON type(COM1)
A type that multiple identical resistors are connected to one common terminal and it is used for measuring the resistance element which for pull-up/pull-down of the circuit system.
COMMON number: 1ch:Channel number 1 fixed
Maximum number of measuring elements Measurement contents: For ch1,measure sequentially from ch2～last channel number
(2) 2 COMMON type(COM2)
Same as 1 common type,with 2 pins assigned
COMMON number: 2ch:Two points fixed of channel number 1 and last channel number (last channel number -2)
Maximum number of measuring elements Measurement contents: Measure sequentially between odd channel numbers for ch1 and measure sequentially between even channel numbers for the last channel number
(3) Parallel type(PARA)
Multiple identical resistors are packaged separately.
COMMON number: none
Maximum number of measuring elements: (last channel number/2)(last channel number setting is even number only)
Measurement contents: ch1-ch2,ch3-ch4,..measure sequentially up to the number of measuring elements
(4) Special type(SPCL) <random measuring pin setting possible>
A mode that can arbitrarily set the pin arrangement of the network of resistor to be measured and measure it.
COMMON number: none,two points of channel number 1 and last channel number are fixed at both ends
Maximum number of measuring elements: 20
Measurement contents: Measure between arbitray LO pin number and arbitrary HI pin number
Operation condition: [Temp.]+5℃～+40℃ [Humidity] less than 85%
Power supply: AC100V～230V automatic selectable type, 50/60Hz, about 50VA
Outer dimension: about 333(W)x99(H)x300(D)mm(excluding protruding parts such as rubber legs,etc.)
Weight: about 4kg
