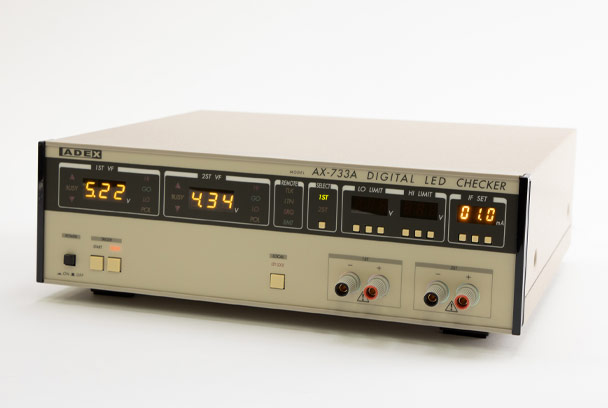

ADEX AX-733A ເຄື່ອງກວດ LED 2 ຊ່ອງ (1.0mA～99.9mA; 0V～ 9.99V)
1ST Part, 2ST Part (common)
Range Accuracy
Measuring current setting (IF SET) DC1.0mA～99.9mA within ±0.1mA ±1digit
VF measurement DC0.00V～ 9.99V within ±0.5％ of F.S ±1digit
VF limit setting (HI LIMIT) 0.00V～ 9.99V 0.00V～ 9.99V
(LO LIMIT) -------- --------
* The accuracy of the measuring current (IF SET) is a reading value connected ammeter on the measurement terminal.
Measuring time(For each ST section)
LED forward measurement: about 7.5msec.
LED reverse direction measurement: about 12.5msec.
* Above is when both ST sections are in HOLD status. If the ST section on one side is in the RUN state, the measurement start timing for the external start input may deviate, and the above measurement time is not constant.
Complection of the measurement signal (EOC)Pulse width: 1msec.～250msec.［000］ Continuous Output when setting
Measuring method: 2 terminal measurement
Comparator setting range : HI LIMIT/LO LIMIT 0.00V～9.99V
Control signal:
[Input] START、HOLD、RESET
[Output] HI、GO、LO、POL、EOC
Operation condition: [Temp.] ＋5℃～＋40℃ [Humidity] less than 85％
Power supply: AC100V～240V Auto selectable type 50/60Hz about 25VA
Outer dimension: 333 (W) ×99 (H) ×300 (D) mm (excluding protruding parts such as rubber legs, etc.)
Weight: about 3.2kg
