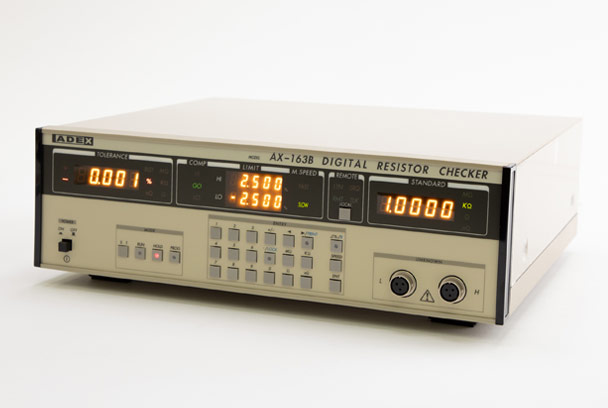

ADEX AX-163B ເຄື່ອງກວດຄວາມຕ້ານທານດິຈິຕອນ (100mΩ ~ 100MΩ)
Measuring range Setting range of standard value Measuring current Accuracy
SLOW [Hi-Reso.] SLOW [Lo-Reso.] FAST [Lo-Reso]
100mΩ 5mΩ～ 109mΩ 180mA within ±0.01％±α±10d within ±0.02％±α±2d within ±0.03％±2α±3d±[2/(1+n)] d
1Ω 109.1mΩ～ 1.09Ω 180mA within ±0.005％±α±3d within ±0.02％±α±1d within ±0.02％±α±2d±[2/(1+n)] d
10Ω 1.091Ω～ 10.9Ω 90mA within ±0.005％±α±3d within ±0.02％±α±1d within ±0.02％±α±2d±[2/(1+n)] d
100Ω 10.91Ω～ 109Ω 18mA within ±0.005％±1d within ±0.02％±1d within ±0.02％±2d±[1/(1+n)] d
1kΩ 109.1Ω～ 1.09kΩ 9mA within ±0.005％±1d within ±0.02％±1d within ±0.02％±2d±[1/(1+n)] d
10kΩ 1.091kΩ～ 10.9kΩ 0.9mA within ±0.005％±1d within ±0.02％±1d within ±0.02％±2d±[1/(1+n)] d
100kΩ 10.91kΩ～ 109kΩ 90μA within ±0.005％±1d within ±0.02％±1d within ±0.02％±2d±[1/(1+n)] d
1MΩ 109.1kΩ～ 1.09MΩ 9μA within ±0.007％±1d within ±0.02％±1d within ±0.05％±2d±[1/(1+n)] d
10MΩ 1.091MΩ～ 10.9MΩ 0.9μA within ±0.002％±10d within ±0.03％±1d within ±0.2％±4d±[1/(1+n)] d
100MΩ 10.91MΩ～ 109MΩ 0.09μA within ±0.1％±20d within ±0.1％±2d －－－－
Measuring time Remote start Free running
SLOW FAST SLOW FAST
AC1 period +about 7.5msec. about 11.5msec. about 5 times/sec. about 10 times/sec.
～about 408msec. ～about 408msec. ～about 2 times/sec. ~ about 2 times/sec.
EOC [End of comparison] pulse width: 1～250msec. or continuative
Measuring method: 2 or 4-terminal measurement
Setting range for judgment value: % Measurement：±10.000％/－99.99％～＋25.00％ Absolute measurements：00000～12500
Operation condition [Temp.]: 5*C～＋40*C [Humidity] less than 85％
Power supply: AC85V～265V, 50～60Hz, about 50VA
Outer dimension: about 333 (W) ×99 (H) ×300 (D) mm (excluding protruding parts such as rubber legs, etc.)
Weight: about 3.8kg
