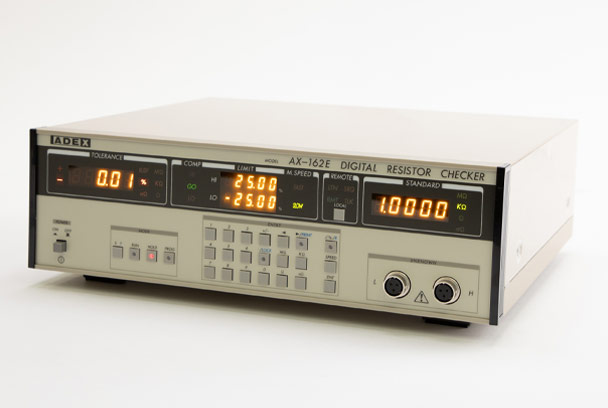

ADEX AX-162E ເຄື່ອງກວດຄວາມຕ້ານທານດິຈິຕອນ (100mΩ ~ 100MΩ)
Measuring range Setting range of standard value Measuring current Accuracy
SLOW FAST
100mΩ 5mΩ～ 100mΩ 100mA within ±0.02％±2α±2d within ±0.03％±3α±2±[2/(1+n)] d
1Ω 100.1mΩ～ 1.00Ω 100mA within ±0.02％±α±1d within ±0.02％±α±2d±[2/(1+n)] d
10Ω 1.001Ω～ 10.0Ω 50mA within ±0.02％±α±1d within ±0.02％±α±2d±[2/(1+n)] d
100Ω 10.01Ω～ 100Ω 10mA within ±0.02％±1d within ±0.02％±2d±[1/(1+n)] d
1kΩ 100.1Ω～ 1kΩ 5mA within ±0.02％±1d within ±0.02％±2d±[1/(1+n)] d
10kΩ 1.001kΩ～ 10.0kΩ 0.5mA within ±0.02％±1d within ±0.02％±2d±[1/(1+n)] d
100kΩ 10.01kΩ～ 100kΩ 50μA within ±0.02％±1d within ±0.02％±2d±[1/(1+n)] d
1MΩ 100.1kΩ～ 1.00MΩ 5μA within ±0.02％±1d within ±0.05％±2d±[1/(1+n)] d
10MΩ 1.001MΩ～ 10.0MΩ 0.5μA within ±0.03％±1d within ±0.2％±4d±[1/(1+n)] d
100MΩ 10.01MΩ～ 109MΩ 0.05μA within ±0.1％±2d －－－－
Measuring time Remote start Free running
SLOW FAST SLOW FAST
+about 18msec. about 0.7msec. about 30 times/sec. about 60 times/sec.
～about 400msec. ～about 400msec. ～about 25 times/sec. ~ about 50 times/sec.
EOC [End of comparison] pulse width: 1～250msec. or continuative
Measuring method: 2 or 4-terminal measurement
Setting range for judgment value: % Measurement：±99.99％ ; Absolute measurements：00000～20000
Operation condition [Temp.]: 5℃～＋40℃ [Humidity] less than 85％
Power supply: AC85V～265V, 50～60Hz, about 50VA
Outer dimension: about 333 (W) ×99 (H) ×300 (D) mm (excluding protruding parts such as rubber legs, etc.)
Weight: about 3.5kg
