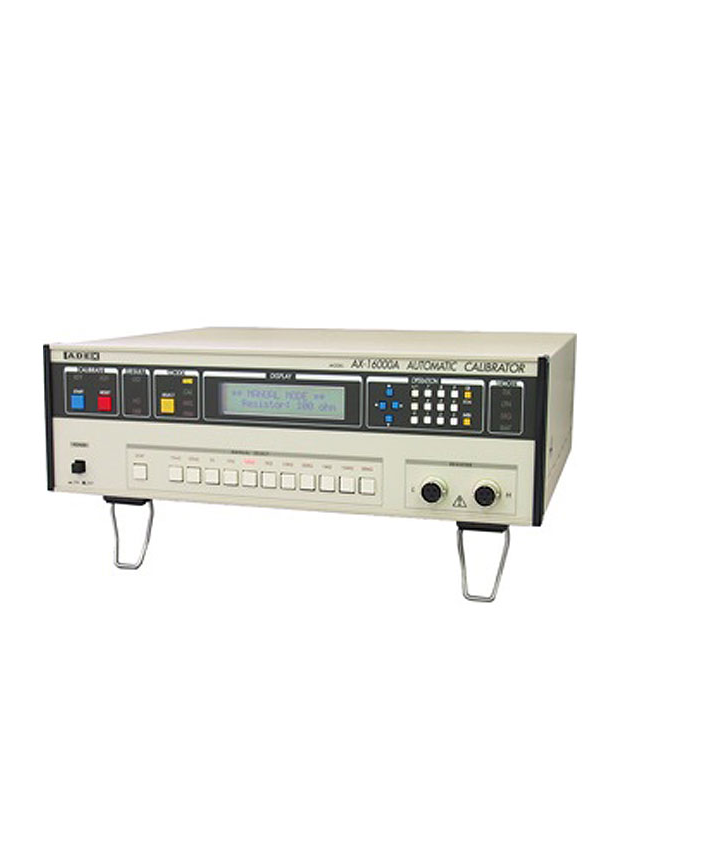

ADEX AX-16000A calibrator ອັດຕະໂນມັດ (10mΩ ~ 100MΩ)
Accuracy of Installed Standard Resistors (at 23℃)
Reference Resistance Value / Accuracy / Rating / Temperature Coefficient
SHORT: < 1μΩ / 0.5A / ----
10mΩ: < ±0.02％ / 0.5A / ±10ppm/℃
100mΩ: < ±0.01％ / 0.5A / ±10ppm/℃
1Ω: < ±0.005％ / 0.5A / ±5ppm/℃
10Ω: < ±0.005％ / 1A / ±5ppm/℃
100Ω: < ±0.005％ / 1A / ±5ppm/℃
1kΩ: < ±0.005％ / 0.5W / ±5ppm/℃
10kΩ: < ±0.005％ / 50V / ±5ppm/℃
100kΩ: < ±0.005％ / 50V / ±5ppm/℃
1MΩ: < ±0.005％ / 50V / ±5ppm/℃
10MΩ: < ±0.005％ / 50V / ±5ppm/℃
100MΩ: < ±0.03％ / 50V / ±5ppm/℃
Calibration Time Required:
[(𝑇𝑚×𝑛𝑜1＋𝑇𝑚×𝑛𝑜2＋𝑇𝑚×𝑛𝑜3＋𝑇𝑚×𝑛𝑓＋𝑇𝑚×𝑛𝑠＋600)×10𝑅𝑎𝑛𝑔𝑒] msec
[(Tm×no1＋Tm×no2＋Tm×no3＋Tm×nf＋Tm×ns＋600)×10Range] msec
Tm: Measurement time of the calibrated instrument [SLOW]
no1～no3: Number of trials for zero-point calibration
nf: Number of trials for measuring absolute value of 10,000 counts
ns: Number of trials for measuring absolute value of 1,000 counts
Operating Conditions:
Temperature: ＋5℃ to ＋40℃
Humidity: Below 85％
Power Supply: AC 85V～265V, 50/60Hz, approximately 15VA
External Dimensions: Approx. 333(W) × 99(H) × 300(D) mm (excluding protruding parts such as rubber feet, etc.)
Weight: Approx. 3.8kg
