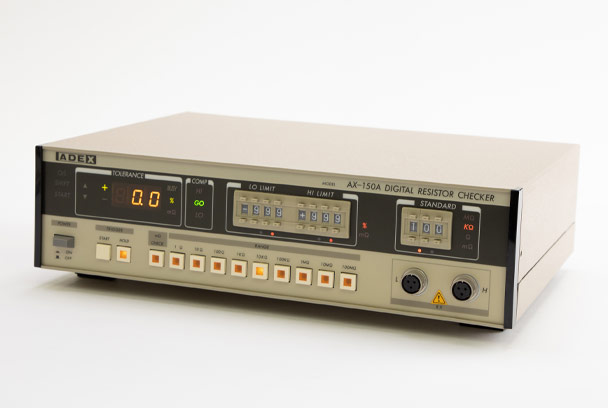

ADEX AX-150A ເຄື່ອງກວດຄວາມຕ້ານທານດິຈິຕອນ (0.1Ω ~ 99.9MΩ)
Measuring range and Accuracy (at 23*C±5*C)
Measuring range Measuring current Accuracy Indication range
SLOW FAST
0.1Ω～ 0.999Ω 100mA within ±α±0.2％±1digit within ±β±0.2％± (2＋n) digit
1Ω～ 9.99Ω 50mA within ±0.2％±1digit within ±0.2％± (2＋n) digit
10Ω～ 99.9Ω 5mA within ±0.2％±1digit within ±0.2％± (2＋n) digit
100Ω～ 999Ω 5mA within ±0.2％±1digit within ±0.2％± (2＋n) digit
1kΩ～ 9.99kΩ 0.5mA within ±0.2％±1digit within ±0.2％± (2＋n) digit
10kΩ～ 99.9kΩ 50μA within ±0.2％±1digit within ±0.2％± (2＋n) digit
100kΩ～ 999kΩ 5μA within ±0.2％±1digit within ±0.2％± (2＋n) digit
1MΩ～9.99MΩ 0.5μA within ±0.2％±1digit within ±0.4％± (2＋n) digit
10MΩ～99.9MΩ 0.05μA within ±0.2％±2digit ----------------
ｍΩ CHECK(0～999mΩ) 50mA within ±0.2％±1digit within ±0.2％±2digit
Measuring time
Power source frequency: 60Hz
Remote start:
SLOW: about 16.7msec.
FAST-1 (F1): about 2.1msec.
FAST-2 (F2): about 4.2msec.
Free running:
SLOW: 30 times per second
FAST: 30 times per second
Power source frequency: 50Hz
Remote start:
SLOW: about 20.0msec.
FAST-1 (F1): about 2.5msec.
FAST-2 (F2): about 5msec.
Free running:
SLOW: 25 times per second
FAST: 25 times per second
Open-circuit voltage of measuring terminal: less than 15V
Measuring method: 2-terminal measurement (more than 100kΩ) 4-terminal measurement (less than 99.9kΩ)
Setting range for measurement value:
±00.0％～±99.9％ both for high and low limit In a case of
ｍΩCHECK：000mΩ～999mΩ
Operation condition: [Temp.] 5℃～＋40℃ [Humidity] less than 85％
Power supply: AC100V～240V switchable, 50/60Hz, about 50VA
Outer dimension: about 333 (W) ×85 (H) ×245 (D) mm (excluding protruding parts such as rubber legs, etc.)
Weight: about 2.8kg
